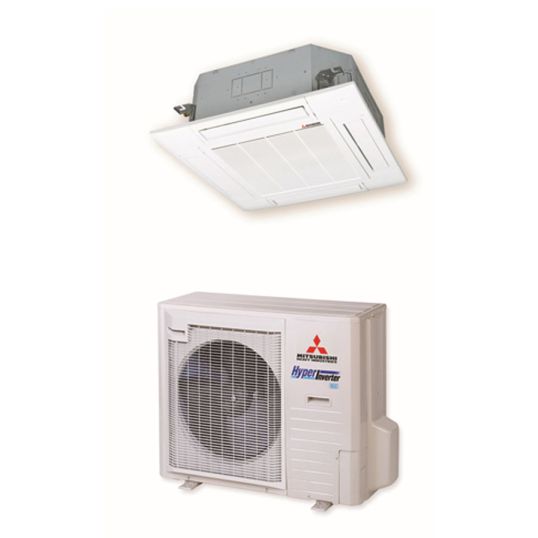

Mitsubishi Heavy Industries Ceiling Cassette Air Conditioner 7.1kW 7.5A Cooling 8kW 7.8A Heating R32
Description
Ceiling Cassette Air Conditioner, 7.1 kW Cooling Capacity, 8 kW Heating Capacity, 7.5 Amp Rated Current (Cooling), 7.8 Amp Rated Current (Heating), Cooling Air Flow Rate: P-High: 467 High: 300 l/sec, Heating Air Flow Rate: Medium: 250 Low: 200 l/sec, R32 Refrigerant, 51/66 dBA, 240 Volt 50 Hz 1 PH, 236mm x 840mm x 840mm Indoor Dimensions, 750mm x 880mm (+88) x 340mm Outdoor Dimensions,-15 to 50 deg C Cooling,-20 to 20 deg C Heating
Key Specifications
| SKU |
MHIFDT71AVNXWVH
|
|---|---|
| Brand |
Mitsubishi Heavy Industries
|
| Product Type |
Cassete Air Conditioning
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 40101700 |
| UOM | EA |
| Vendor Product | FDT71AVNXWVH |
| Cooling Capacity | 7.1 kW |
| Cooling Air Flow Rate | P-Hi: 467 Hi: 300 l/sec |
| Heating Air Flow Rate | Med: 250 Low: 200 l/sec |
| Heating Capacity | 8 kW |
| Indoor Dimensions | 236 mm x 840 mm x 840 mm |
| Outdoor Dimensions | 750 mm x 880 mm (+88) x 340 mm |
| Power Supply | 240 Volt 50 Hz 1 PH |
| Rated Current (Cooling) | 7.5 Amp |
| Rated Current (Heating) | 7.8 Amp |
| Sound Level | 51/66 dBA |
| Refrigerant Type | R32 |
| Temperature | -15 to 50 deg C Cooling-20 to 20 deg C Heating |
