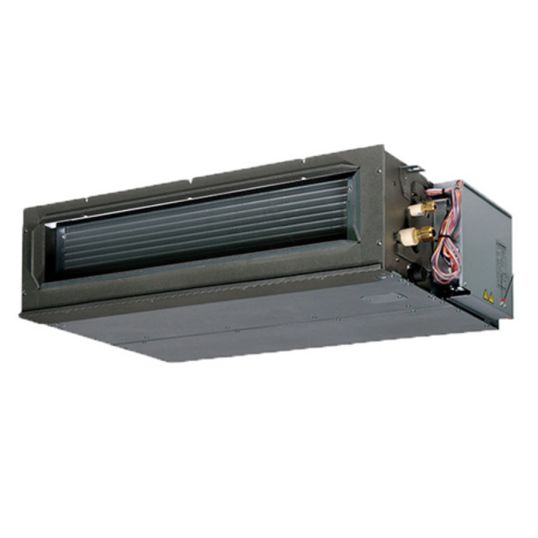

Mitsubishi FDU Series Ducted Air Conditioner Set High Static Pressure Cooling:10kW Heating:11.2kW R32 1 Phase

$Mitsubishi\Mitsubishi_FDU100AVNAWVH.jpg$

Description

Ducted Air Conditioner Set, 10 kW Cooling, 11.2 kW, 10 kW Heating Capacity, 14.3 Amp Rated Current (Cooling), 12.7 Amp Rated Current (Heating), Cooling Air Flow Rate: High: 467 l/sec, Medium: 417 l/sec, Low: 317 l/sec, Heating Air Flow Rate: High: 467 l/sec, Medium: 417 l/sec, Low: 317 l/sec, R32 Refrigerant, Indoor: High: 38 dBA, Med: 36 dBA, Low: 30 dBA, Outdoor: 55 dBA, 1 Phase 240 Volt 50 Hz, Cooling: 2.99 kW, Heating: 2.66 kW, 280mm Height ? 1370mm Width ? 740mm Depth Indoor, 845mm Height x 970mm Width x 370mm Depth Outdoor

Key Specifications

SKU	MHIFDU100AVNAWVH
Brand	Mitsubishi Heavy Industries
Product Type	Ducted Air Conditioning

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Single Phase model External Static Pressure control Self-diagnostics function Weekly /Sleep timer 600mm built-in drain pump
Standard Pack Size	1
UNSPSC Class	40101700
UOM	EA
Vendor Product	FDU100AVNAWVH
Cooling Air Flow Rate	Hi: 467 l/sec Med: 417 l/sec Low: 317 l/sec
Cooling Capacity	10 kW
Heating Capacity	11.2 kW/10 kW
Heating Air Flow Rate	Hi: 467 l/sec Med: 417 l/sec Low: 317 l/sec
Indoor Dimensions	280 mm Height ? 1370 mm Width ? 740 mm Depth
Power Supply	1 Phase 240 Volt 50 Hz
Outdoor Dimensions	845 mm Height x 970 mm Width x 370 mm Depth
Rated Current (Cooling)	14.3 Amp
Refrigerant Type	R32
Rated Current (Heating)	12.7 Amp
Sound Level	Indoor: High-38 dBA Med-36 dBA Low-30 dBA Outdoor: 55 dBA
