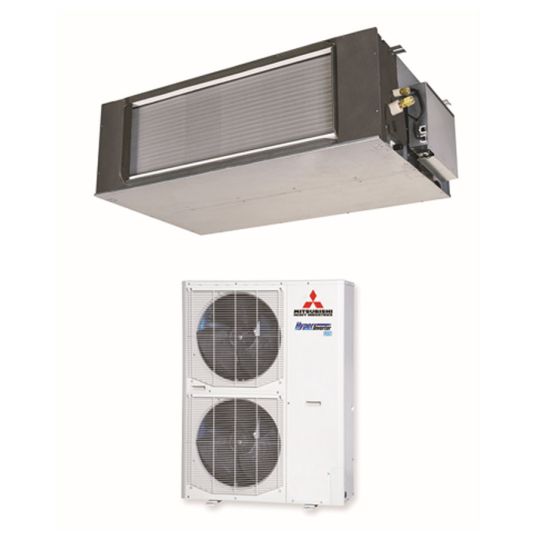

Mitsubishi Heavy Industries Ducted Air Conditioner 10kW 13.1A Cooling 10kW 10.4A Heating R32
Description
Ducted Air Conditioner, 10 kW Cooling Capacity, 10 kW Heating Capacity, 13.1 Amp Rated Current (Cooling), 10.4 Amp Rated Current (Heating), Cooling Air Flow Rate: P-High: 600 High: 467 l/sec, Heating Air Flow Rate: Medium: 417 Low: 317 l/sec, R32 Refrigerant, 56/68 dBA, 240 Volt 50 Hz 1 PH, 280mm x 1370mm x 740mm Indoor Dimensions, 750mm x 880mm (+88) x 340mm Outdoor Dimensions,-15 to 46 deg C Cooling,-15 to 20 deg C Heating
Key Specifications
| SKU |
MHIFDU100VNPWVH
|
|---|---|
| Brand |
Mitsubishi Heavy Industries
|
| Product Type |
Ducted Air Conditioning
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 40101700 |
| UOM | EA |
| Vendor Product | FDU100VNPWVH |
| Cooling Capacity | 10 kW |
| Cooling Air Flow Rate | P-Hi: 600 Hi: 467 l/sec |
| Heating Air Flow Rate | Med: 417 Low: 317 l/sec |
| Heating Capacity | 10 kW |
| Indoor Dimensions | 280 mm x 1370 mm x 740 mm |
| Outdoor Dimensions | 750 mm x 880 mm (+88) x 340 mm |
| Power Supply | 240 Volt 50 Hz 1 PH |
| Rated Current (Cooling) | 13.1 Amp |
| Rated Current (Heating) | 10.4 Amp |
| Sound Level | 56/68 dBA |
| Refrigerant Type | R32 |
| Temperature | -15 to 46 deg C Cooling-15 to 20 deg C Heating |
