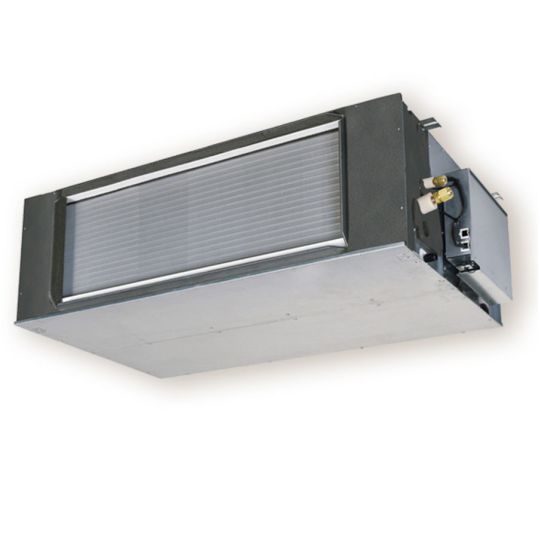

Mitsubishi FDUA Series Ducted Air Conditioner Set High Static Pressure Wired Cooling:10kW Heating:11.2kW 3 Phase R32
Description
Ducted Air Conditioner Set, 10 kW Cooling, H1: 11.2 kW, H2: 10 kW Heating Capacity, 4.7 Amp Cooling, 4.4 Amp Heating, 650-600-550-483 l/sec Cooling, 650-600-550-483 l/sec Heating, R32 Refrigerant, Indoor: 43-42-40-37 dBA, Outdoor: 55 dBA, 3 Phase 380-415 Volt 50 Hz, Cooling: 3.05 kW, Heating: 2.87 kW, 398mm Height x 1150mm Width x 650mm Depth Indoor, 845mm Height x 970mm Width x 370mm Depth Outdoor
Key Specifications
| SKU |
MHIFDUA100AVSAWVH
|
|---|---|
| Brand |
Mitsubishi Heavy Industries
|
| Product Type |
Ducted Air Conditioning
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 40101700 |
| UOM | EA |
| Vendor Product | FDUA100AVSAWVH |
| Cooling Capacity | 10 kW |
| Cooling Air Flow Rate | 650-600-550-483 l/sec |
| Heating Air Flow Rate | 650-600-550-483 l/sec |
| Heating Capacity | H1: 11.2 kW/H2: 10 kW |
| Indoor Dimensions | 398 mm Height x 1150 mm Width x 650 mm Depth |
| Outdoor Dimensions | 845 mm Height x 970 mm Width x 370 mm Depth |
| Power Supply | 3 Phase 380-415 Volt 50 Hz |
| Rated Current (Cooling) | 4.7 Amp |
| Rated Current (Heating) | 4.4 Amp |
| Sound Level | Indoor: 43/42/40/37 dBA Outdoor: 55 dBA |
| Refrigerant Type | R32 |
