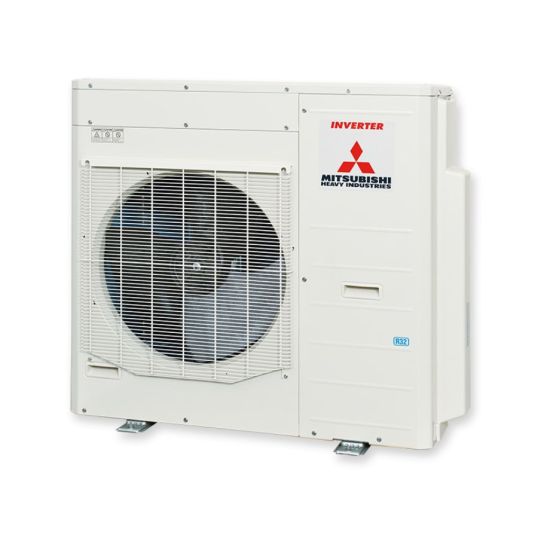

Mitsubishi Heavy Industries Indoor/Outdoor Inverter Air Conditioner 10kW 11.4A Cooling 10.5kW 10A Heating R32
Description
Indoor/Outdoor Inverter Air Conditioner, 10 kW Cooling Capacity, 10.5 kW Heating Capacity, 11.4 Amp Rated Current (Cooling), 10 Amp Rated Current (Heating), R32 Refrigerant, 240 Volt 50 Hz 1 PH, 945mm x 970mm x 370mm Outdoor Dimensions,-15 to 46 deg C Cooling,-15 to 24 deg C Heating. With the ability to connect 3 to 5 indoor units to a single outdoor unit, the SCM100ZS-W outdoor multi-split system offers a compact and versatile solution for cooling and heating multiple rooms. Thanks to improved component design, the SCM-ZS-W series boasts super quiet operation while also delivering high energy efferences. The ability to control each indoor unit independently offers even further energy savings while also providing complete control.
Key Specifications
| SKU |
MHISCM100ZS-W
|
|---|---|
| Brand |
Mitsubishi
|
| Product Type |
Air Conditioning
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 40101700 |
| UOM | EA |
| Vendor Product | SCM100ZS-W |
| Cooling Capacity | 10 kW |
| Heating Capacity | 10.5 kW |
| Outdoor Dimensions | 945 mm x 970 mm x 370 mm |
| Power Supply | 240 Volt 50 Hz 1 Phase |
| Rated Current (Heating) | 10 Amp |
| Refrigerant Type | R32 |
| Temperature | -15 to 46 deg C Cooling/-15 to 24 deg C Heat |
