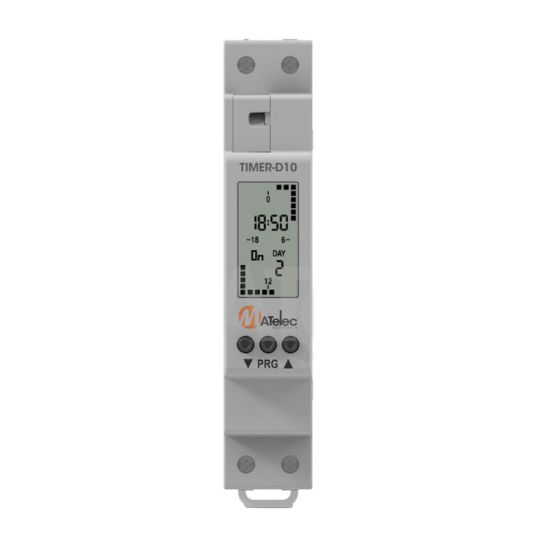

Matelec Compact Slimline Timer Clock 240VAC 16A 1W LCD 1 R/O Programmable 24x7

Description

Timer Clock Compact Slimline, 240 Volt AC, 16 Amp, 1 Watt, Off/Auto/On, 4 sq-mm, DIN Rail Mounting, IP20, -20 to 50 deg, 91 mm Height, 18 mm Width, 65 mm Depth

Key Specifications

Barcode (EAN-13)	9338999008617
SKU	MTLTIMER-D10
Brand	Matelec
Product Type	Timers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	7 different programs, one for each day of the week 4 years lithium backup battery (replaceable) for maintaining the date and time without mains power Lowe battery indicator Manual override (temporary or permanent) Backlit LCD with auto power off Compact slimline design 5 years warranty
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	TIMER-D10
Conductor Size	4 sq-mm
Current	16 Amp
Depth	65 mm
Height	91 mm
Mounting Method	DIN Rail
IP Rating	IP20
Power Rating	1 Watt
Temperature	-20 to 50 deg
Timing Function	Off/Auto/On
Voltage	240 Volt AC
Width	18 mm
