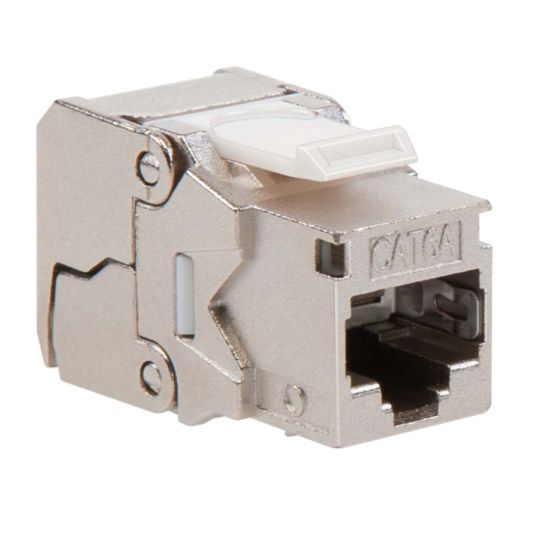

Netconnect KJ Series Modular Jack CAT6A Shielded Keystone RJ45 500MHz Silver

$Netconnect\Netconnect_760253419.jpg$

Description

Modular Jack, Solid/Stranded, IDC Termination, 500 MHz Frequency Bandwidth, Standard Outlet, CAT6A Shielded, T568A/T568B Wiring Scheme, UL 94 V-0 Flammability, 1.6mm Panel Thickness, 1.27 um Contact Plating Thickness, Gold Plated Contact, Polycarbonate/Zamak Housing, Silver,-10 to 60 deg C, 21.5mm Height, 17.2mm Width, 38.3mm Depth

Key Specifications

SKU	NCO760253419
Brand	Netconnect

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Robust 2 connector PL standards compliant 4PPoE compliance in accordance with IEEE 802.bt Type 4 ISO/TIA component up to 500MHz Solution for IoT an PoE application Tool free termination Keystone footprint
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	760253419
Cable Type	CAT6A Shielded
Conductor Type	Solid/Stranded
Contact Material	Gold Plated
