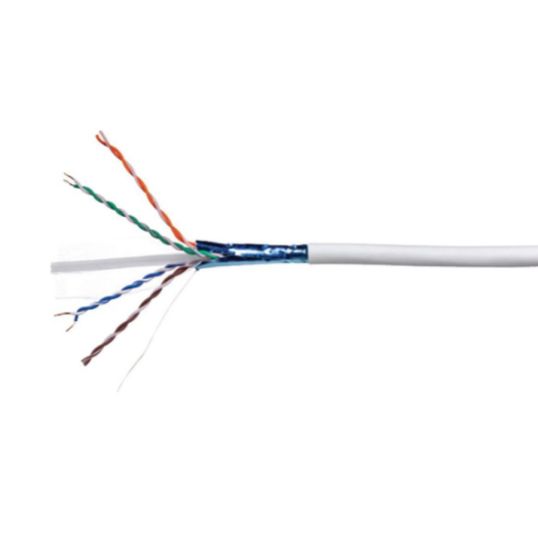

Netconnect CS44Z1 F/UTP Data Cable Cat6A 4 Pair 23AWG Polyolefin/LSZH White 305M
Description
CAT 6A Data Cable F/UTP, 80 Volt, Solid, 23 AWG, 1.14 mm Conductor Diameter, 8 Ohms/100m Conductor Resistance, 500 MHz Frequency Bandwidth, Aluminium Foil/Polyester Tape, Cat 6A F/UTP Shielded, 4 Pair, 8 x OD Bend Radius, 11.34 kg Max. Pulling Force, Bare Copper Conductor, Polyolefin Insulation, LSZH Sheath, White Sheath, 20 to 60 deg C, 305 mtr Length, 7.1 mm Outside Diameter
Key Specifications
| SKU |
NCO884024508/10
|
|---|---|
| Brand |
Netconnect
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 305 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | RL |
| Vendor Product | 884024508/10 |
| Conductor Material | Bare Copper |
| Cable Type | Cat 6A F/UTP Shielded |
| Conductor Diameter | 1.14 mm |
| Conductor Resistance | 8 Ohms/100m |
| Bend Radius | 8 x OD |
| Conductor Size | 23 AWG |
| Conductor Type | Solid |
| Frequency Bandwidth | 500 MHz |
| Insulation Material | Polyolefin |
| Max. Pulling Force | 11.34 kg |
| Outside Diameter | 7.1 mm |
| Pair Count | 4 |
| Sheath Colour | White |
| Sheath Material | LSZH |
| Shielded Type | Aluminium Foil/Polyester Tape |
| Temperature | 20 to 60 deg C |
| Voltage | 80 Volt |
