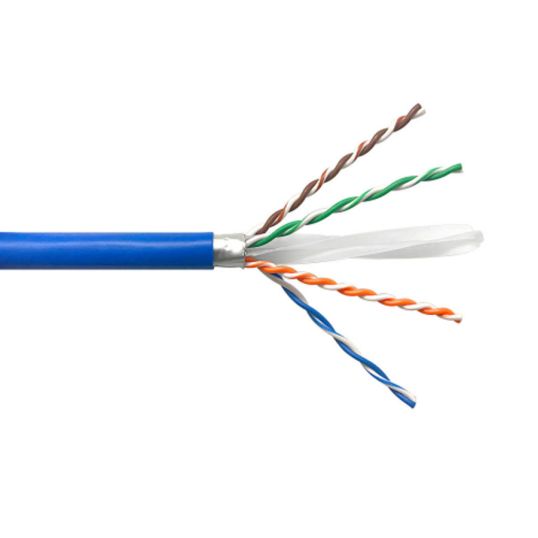

Netconnect Twisted Pair Cable CAT 6A U/UTP 4 Pair 24AWG Polyolefin/PVC Blue 305m

$Netconnect\Netconnect_884049104-10.jpg$

Description

Twisted Pair Cable, 80 Volt, Solid, 24 AWG, 1-500 MHz Frequency Bandwidth, 8 Conductors, 8 Ohm/100m, 0.508mm Sheath Thickness, U/UTP, CAT6A, 4 Pair, 11.34 kg Max. Pulling Force, Bare Copper Conductor, Polyolefin Insulation, PVC Sheath, Blue Sheath, -20 to 60 deg C, 305 mtr Length, 6.985mm Outside Diameter

Key Specifications

SKU	NCO884049104/10
Brand	Netconnect
Product Type	Cat6A Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	305
UNSPSC Class	26121600
UOM	RL
Vendor Product	884049104/10
Cable Type	CAT6A
Conductor Material	Bare Copper
Conductor Resistance	8 Ohm/100m
Conductor Size	24 AWG
Conductor Type	Solid
Frequency Bandwidth	1-500 MHz
Insulation Material	Polyolefin
Max. Pulling Force	11.34 kg
Outside Diameter	6.985 mm
Pair Count	4 Pair
Sheath Material	PVC
Sheath Colour	Blue
Sheath Thickness	0.508 mm
Shielded Type	U/UTP
Temperature	-20 to 60 deg C
Voltage	80 Volt
