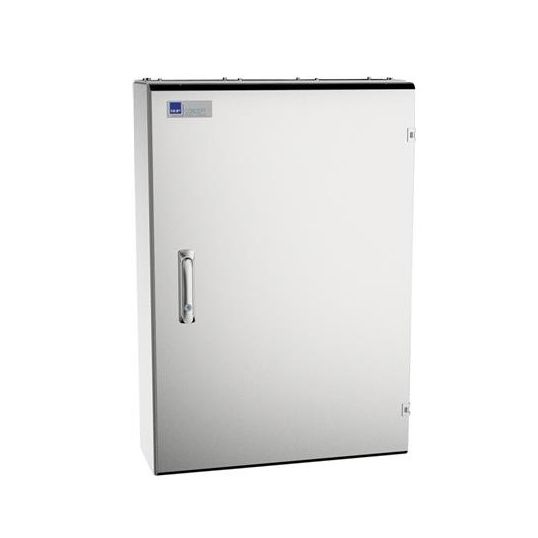

NHP Din-T Modular MCB Panelboard W/O Main Switch 24P 1.6mm 316 Stainless Steel IP30 IP66

chevron-left
loader
Loading...

Description

chevron-down
Modular MCB Panelboard Without Main Switch, 240 Volt AC at 1 Ph, 415 Volt AC at 3 Ph, 250 Amp Busbar, Number of Poles: 24, Semi Flush Lockable Door, For Use With: MCBs, IP30, IP66, 1.6mm 316 Stainless Steel, Brushed, 648mm Height x 600mm Width x 240mm Depth

Key Specifications

chevron-down
SKU
NHPCPR24SS
Brand
NHP
Range Name
Concept Premier Din-T
Product Type
Panelboards MCB

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Partial type tested busbar system
  • 400 Amp Isolator main switch option
  • Isolator or circuit breaker main switch option
  • Modular sizes up to 96-way
  • 1.6 mm fully welded construction
  • Stainless steel option
  • Accessory modules
  • Removable gland plates
  • Door fitted independent of escutcheon
  • Removeable hinged escutcheon
Standard Pack Size 1
UNSPSC Class 39121100
UOM EA
Vendor Product CPR24SS
Configuration DIN 3M-648mm
Current 250 Amp
Dimensions 648mm Height x 600mm Width x 240mm Depth
Door Type Semi Flush Lockable
Finish Brushed
IP Rating IP30/66
Material 1.6mm 316 Stainless Steel
Number Of Poles 24P
Voltage 240-415 Volt
