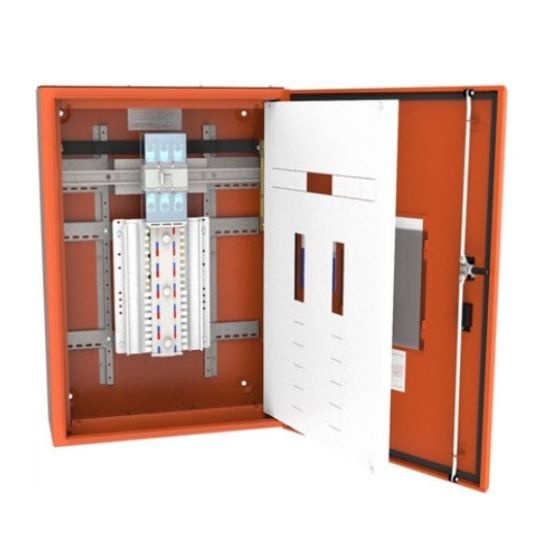

NHP Din-T Modular MCB Panelboard W/250A Main Switch 36P 1.6mm Mild Steel X15 Orange IP30 IP66

$NHP\NHP_Concept-Premier-Din-T-Org.jpg$ $NHP\NHP_Concept-Premier-Din-T-Org.jpg$

Description

Modular MCB Panelboard, 240 Volt AC at 1 Ph, 415 Volt AC at 3 Ph, 250 Amp Busbar, Number of Poles: 36, Semi Flush Lockable Door, For Use With: MCBs, IP30, IP66, 1.6mm Mild Steel, X15 Orange, Powder Coated, 864mm Height x 240mm Depth

Key Specifications

SKU	NHPCPR36M250O
Brand	NHP
Range Name	Concept Premier Din-T
Product Type	Panelboards MCB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Partial type tested busbar system 400 Amp Isolator main switch option Isolator or circuit breaker main switch option Modular sizes up to 96-way 1.6 mm fully welded construction Stainless steel option Accessory modules Removable gland plates Door fitted independent of escutcheon Removeable hinged escutcheon
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	CPR36M250O
Colour	Orange
Configuration	DIN-T 4M-864mm
Current	250 Amp
Dimensions	864mm Height x 240mm Depth
Door Type	Semi Flush Lockable
Finish	Powder Coated
IP Rating	IP30/66
Material	1.6mm Mild Steel
Number Of Poles	36P
Voltage	240-415 Volt
