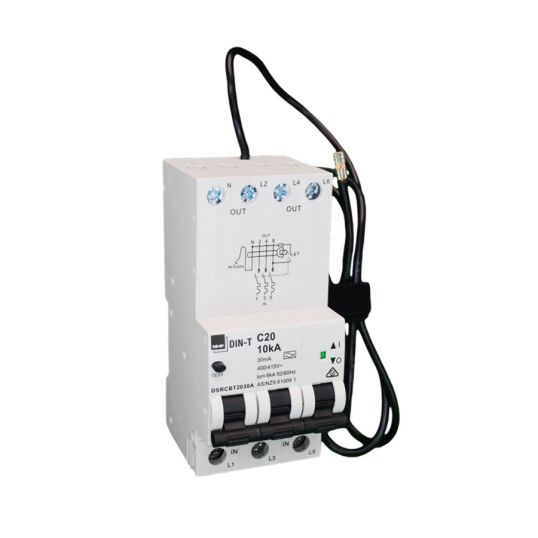

NHP Residual Current Device 16Amp 10kA 30mA C Curve 3 + N Pole

Description

NHP's DIN-T range of residual current devices (RCDs) are a high-performance electrical safety solution designed for commercial, industrial and mining applications. These RCDs offer a high level of selectivity, with sensitives including 10 mA, 30 mA, 100 mA and 300 mA, and types starting at Type A for general purpose applications through to Type F and B for more complex loads.

Key Specifications

SKU	NHPDSRCBT1630A
Brand	NHP
Range Name	Din-Safe

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	DIN safe RCBOs feature 10 kA short circuit rating Compact 3P width for easy retrofitting 900 mm neutral pigtail saving cable and installation time 30 mA sensitivity for general personnel protection applications 100 mA or 300 mA sensitivity option C trip curve for general light and power applications
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	DSRCBT1630A-NLA
Current	16 Amp
Connection Type	Fork/Pin
Height	117.5 mm
Depth	71.6 mm
Frequency	50/60 Hz
Interrupt Capacity	10 kA
Mounting Method	DIN Rail
IP Rating	IP20/40
Number Of Poles	3 Pole
Temperature	5 to 55 deg C
Trip Characteristic	C Curve
Trip Sensitivity	30 mA
Voltage	415 Volt
Width	53.4 mm
