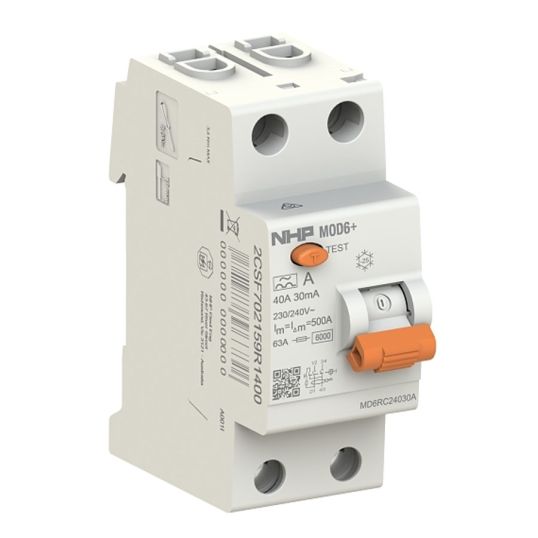

NHP Residual Current Circuit Breaker Type A 1P+N 40A 240V 30mA 2Module 35mm DIN Rail Mount

$NHP\NHP-MOD6_MD6RC24030A.JPG$

Description

NHP MOD6+ Residual Current Devices (RCDs) offer a 6 kA rating with a proven history in domestic and commercial applications. The MOD6+ RCD range offers many solutions for both 1 phase in 10 mA and 30 mA sensitivities as well as 3 phase in 30 mA sensitivities. The MOD6+ RCDs can be easily installed into NHP Loadcenters, as well as MOD6+ RCBOs into MOD6+ Distribution Panelboards.

Key Specifications

Barcode (EAN-13)	8012542642657
SKU	NHPMD6RC24030A
Brand	NHP
Range Name	MOD6+
Product Type	Safety Switches RCCB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Earth leakage protection Type A Type Al high immunity type option Switched neutral Suits pole covers, loadcentres General light and power applications
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	MD6RC24030A
Conductor Size	1-25 sq-mm Solid Core - 1-16 sq-mm Multi-Wired
Current	40 Amp
Depth	75 mm
Frequency	50/60 Hz
Electrical Life	10000 Cycles
Height	88 mm
Interrupt Capacity	0.25 kA
IP Rating	IP40
Mechanical Durability	20000 Cycles
Number Of Poles	1 Pole
Mounting Method	DIN Rail
Modules	2 Module 35 mm
Please Note	Type A
Temperature	-5 to 70 deg C
Trip Sensitivity	30 mA
Voltage	240 Volt
Width	35 mm
