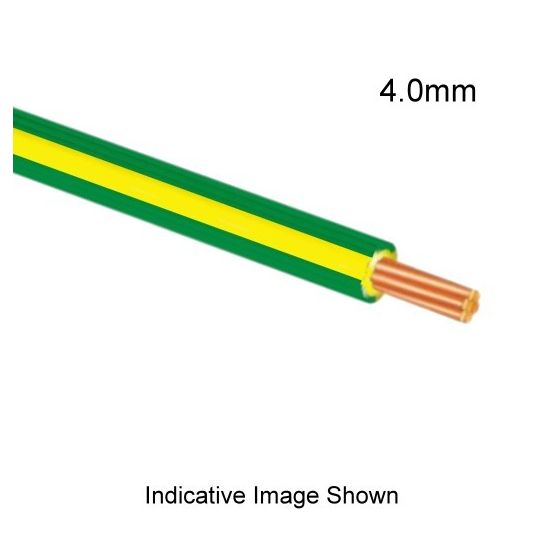

Olex 4mm Building Wire Green/Yellow 1mtr

Description

Building Wire, 4 mm, Stranded Copper, 0.6-1 kV, 7/0.85 mm Strands, 4.5 mm Overall Diameter, 1 mtr Length, 1 mm Insulation Thickness, 0.28 kN Pulling Tension, DC: 4.61 Ohm/km AC: 5.61 Ohm/km Conductor Resistance, 10 MOhm/km Insulation Resistance, V-90 PVC Insulation, Green/Yellow Insulation, 90 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9319215007515
SKU	OLX7/085BWEWA1
Brand	Olex
Product Type	Building Wire

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121614
UOM	MTR
Vendor Product	BAAP09A1001AAHN
Conductor Type	Stranded Copper
Conductor Resistance	DC: 4.61 Ohm/km AC: 5.61 Ohm/km
Insulation Colour	Green/Yellow
Insulation Resistance	10 MOhm/km
Insulation Thickness	1 mm
Insulation Material	V-90 PVC
Overall Diameter	4.5 mm
Pulling Tension	0.28 kN
Stranding	7/0.85 mm
Standards	AS/NZS 1125 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
Conductor Size	4 mm
