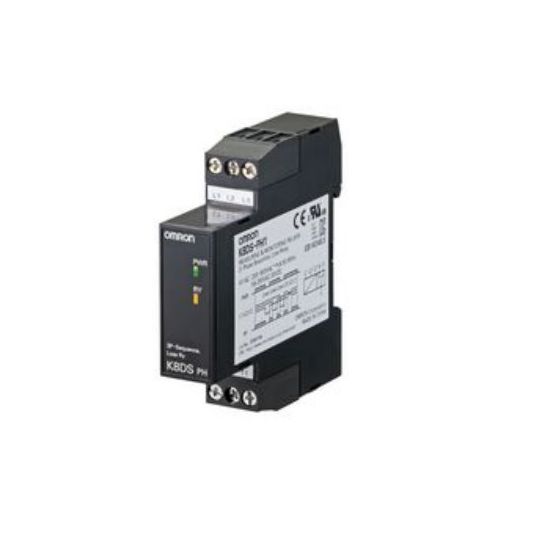

Omron Phase Monitoring Relay 1P SPDT 5A 220/240V DIN Rail/Track Mount

Description

Phase Monitoring Relay, 200-480 Volt AC, 220/240 Volt AC, 5 Amp, 2.7 VA, 1 Pole, SPDT, Operating Time: 0.1 sec, Screw Terminal, DIN Rail Mount/Track, Body Material: PC, -20 to 60 deg C, 74 mm Height, 17.5 mm Width, 80 mm Depth

Key Specifications

Barcode (EAN-13)	4548583402553
SKU	OMRK8DS-PH1
Brand	Omron
Product Type	Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Lineup includes a 17.5-mm slim, compact model Greater resistance to inverter noise Distinguishes between correct phases, phase sequence, and phase loss when power is turned ON Supports phase loss detection when the motor is operating Output status can be monitored using LED indicator Ideal to prevent reverse operation of motors
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	K8DS-PH1
Contact Configuration	SPDT
Depth	80 mm
Height	74 mm
Current	5 Amp
Mounting Method	DIN Rail/Track
Number Of Poles	1 Pole
Operating Coil Voltage	220-240 Volt AC
Operating Time	0.1 sec
Power Rating	2.7 VA
Temperature	-20 to 60 deg C
Voltage	200-480 Volt AC
Terminal Type	Screw
Width	17.5 mm
