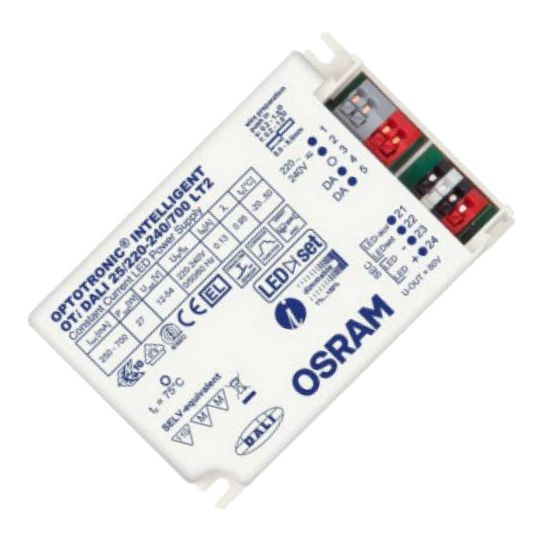

Osram LED Driver OTI DALI 27W 220-240V Plastic IP20 F/OTI DALI 25/220-240/700

chevron-left

Description

chevron-down
LED Driver OTI DALI, Input Voltage: 220-240 Volt, Output Voltage: 12-54 Volt, 27 Watt, 180-700 mA, 50/60 Hz, Dimmable, For Use With: OTI DALI 25/220-240/700, IP20, Power Factor: 0.95, Plastic, -20 to 50 deg C, 103 mm Length, 67 mm Width, 29.5 mm Height

Key Specifications

chevron-down
Barcode (EAN-13)
4062172017909
SKU
OSROTIDALI25
Brand
Osram
Product Type
Drivers

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Versatile DALI window driver due to flexible output characteristic
  • Very high efficiency and reliability
  • Protection of the system thanks to thermal management and Smart Control
  • High-quality dimming of 1 to 100% by amplitude dimming (OTi DALI 15)
  • Soft switch off function
  • Suitable for use in luminaries with flexible current setting (DALI, CLO, LEDset)
  • Suitable for indoor SELV installations
  • Suitable for downlights, spotlights and LED panels
Standard Pack Size 1
UNSPSC Class 39101900
UOM EA
Vendor Product 4062172017909
Current 180-700 mA
Dimmable Dimmable
For Use With OTI DALI 25/220-240/700
Frequency 50/60 Hz
Height 29.5mm
Input Voltage 220-240 Volt
IP Rating IP20
Output Voltage 12-54 Volt
Power Factor 0.95
Temperature -20 to 50 deg C
Wattage 27 Watt
Width 67mm
