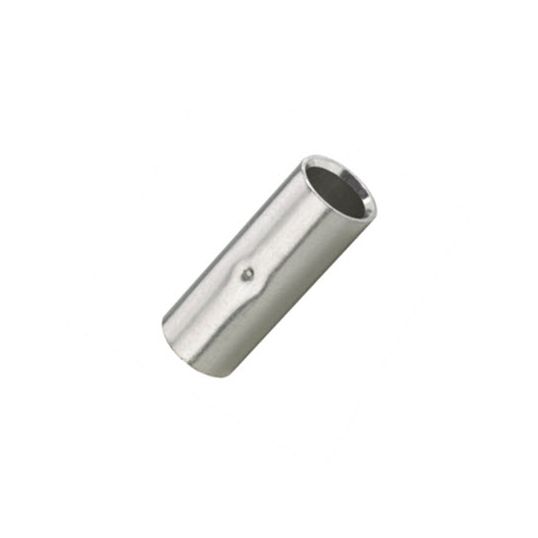

Panduit Crimp Link Standard Non-Insulated Copper 95mm 54mm OAL

chevron-left
loader
Loading...

Description

chevron-down
Crimp Link, Standard, Non-Insulated, Copper, 95 mm Conductor, 13.5mm Inside Diameter, Terminal Type: Butt Splice, Annealed Seamless Copper Body, Annealed Seamless Copper Conductor, Tin Electroplated Finish, 90 deg C

Key Specifications

chevron-down
Barcode (EAN-13)
07498376990
SKU
PANSCMS95-Q
Brand
Panduit
Product Type
Links Standard Copper

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • For use with Class 2 stranded copper conductors
  • Tin plated to inhibit corrosion
  • Product information marked on connector for easy selection and installation
  • Internally bevelled wire entry for fast and easy installation
  • Metric conductor
  • Standard barrel
Standard Pack Size 25
UNSPSC Class 39121400
UOM EA
Vendor Product SCMS95-Q
Body Material Annealed Seamless Copper
Conductive Material Annealed Seamless Copper
Conductor Size 95 mm
Crimping Die P54
Finish Tin Electroplated
Inside Diameter 13.5 mm
Overall Length 54 mm
Temperature 90 deg C
Terminal Type Butt Splice
