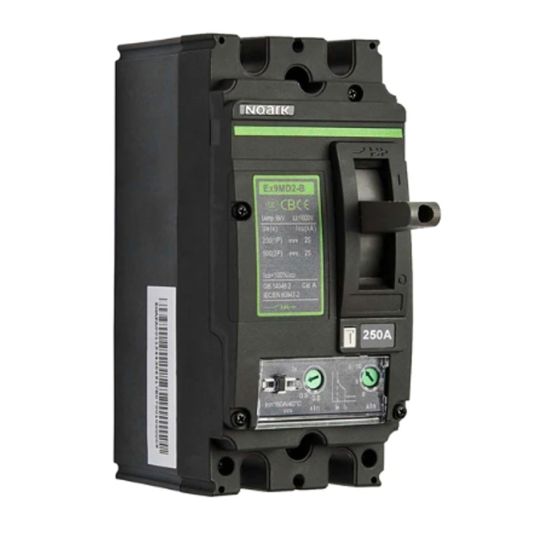

PowerPlus Energy Moulded Case Circuit Breaker 2 Pole 25 kA 250 Amp 500 VDC
Loading...
Description
The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits. Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases.
Key Specifications
| SKU |
PEGN28905
|
|---|---|
| Brand |
POWERPLUS ENERGY
|
| Product Type |
MCCBs
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | N28905 |
| Height | 126 mm |
| Depth | 105 mm |
| Frame Type | Size 2 |
| Current | 250 Amp |
| Interrupt Capacity | 25 kA |
| IP Rating | IP40 |
| Number Of Poles | 2 Pole |
| Terminal Type | Lug |
| Voltage | 500 Volt DC |
| Trip Type | Thermal Magnetic |
| Width | 157 mm |
