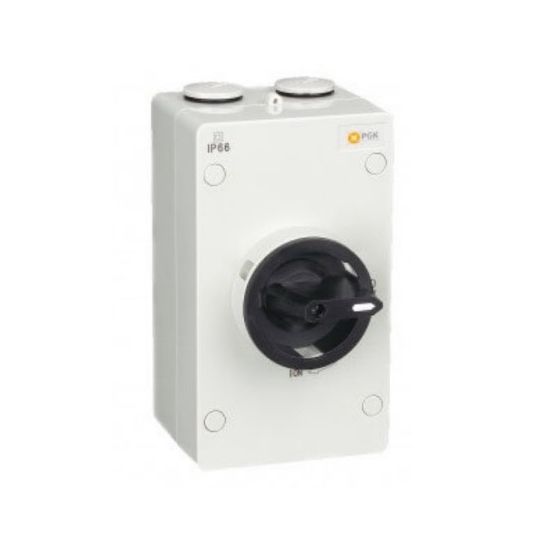

PGK DC Isolator Switch Surface Mounting Weatherproof 4P 32A 1000VDC IP66

chevron-left

Description

chevron-down
Isolator Switch Weatherproof, 1000 Volt DC, 32 Amp, 4 Pole, Screw Connection, Surface Mounting, IP66, 4-16 mm Terminal Capacity, -50 to 85 deg C, 187.6 mm Height, 98.6 mm Width, 108.6 mm Depth, MC4 Genuine MC4 Genuine Solar Isolator

Key Specifications

chevron-down
Barcode (EAN-13)
9347153000473
SKU
PGKSE042E
Brand
PGK
Product Type
Isolating Switches

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Third party independent testing of all shipments
  • Each batch is marked with a batch number for traceability
  • Multidirectional dial seal
  • Pressure resistant O-rings on gland caps
  • Laser Etched identification marks (batch, and manufacturer)
  • Extra screw caps for service and inspection
  • Precision high tensile spring for faster switching reaction time
  • Precision polycarbonate and UV stabilisation mixing
  • Screw glands (no knockouts)
  • External mounting brackets included no need to compromise the IP67 enclosure
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product SE042E
Connection Type Screw
Current 32 Amp
Depth 108.6 mm
Height 187.6 mm
IP Rating IP66
Mounting Method Surface
Number Of Poles 4 Pole
Please Note MC4 Genuine MC4 Genuine Solar Isolator
Temperature -50 to 85 deg C
Terminal Capacity 4-16 mm
Voltage 1000 Volt DC
Width 98.6 mm
