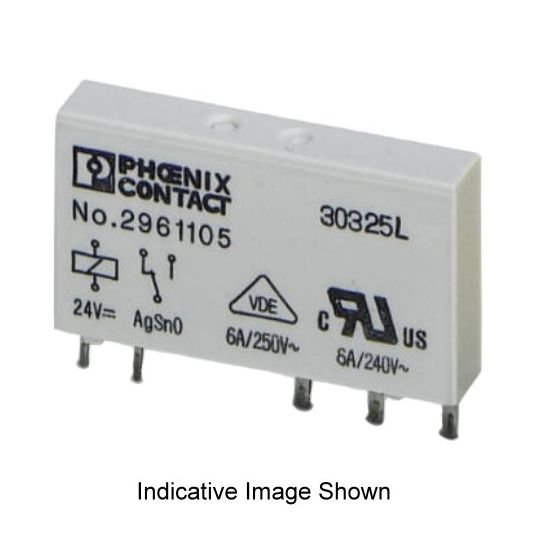

Phoenix Contact Miniature General Purpose Relay Plug-In Mount SPDT 7ma
Description
Miniature General Purpose Relay, 24 Volt DC, 7 mA, 140 Watt, SPDT Configuration, 3390 Ohm, 5 ms Operate/2.5 ms Release Operating Time, Plug-In Mounting, AgSnO Contact, -40 to 85 deg C, 28 mm Height, 5 mm Width, 15 mm Depth
Key Specifications
| SKU |
PHO2961105
|
|---|---|
| Brand |
Phoenix Contact
|
| Product Type |
Power Relays
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 10 |
|---|---|
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | 2961105 |
| Contact Material | AgSnO |
| Current | 7 mA |
| Contact Configuration | SPDT |
| Mounting Method | Plug-In |
| Depth | 15 mm |
| Height | 28 mm |
| Operating Time | 5 ms Operate/2.5 ms Release |
| Power Rating | 140 Watt |
| Temperature | -40 to 85 deg C |
| Resistance | 3390 Ohm |
| Voltage | 24 Volt DC |
| Width | 5 mm |
