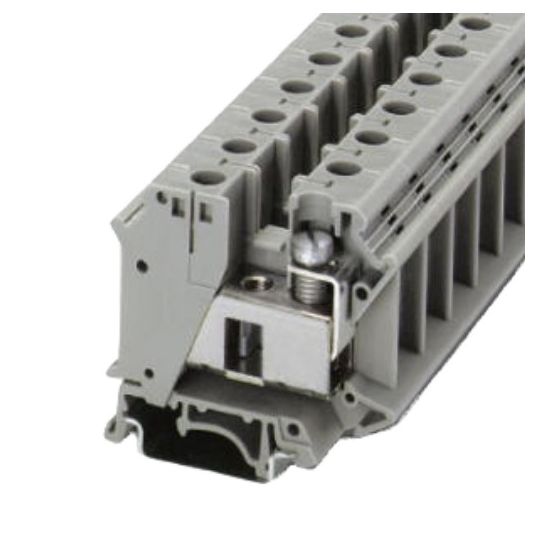

Phoenix Contact Rail Terminal Block Screwed 2 Wire 1 Level 0.75-35mm Grey Polyamide

$Phoenix_Contact\Phoenix_Contact_3006182.jpg$

Description

Installation Terminal Block, 0.75-35 mm, 2 Conductors, 800 Volt, 8 kV Rated Surge Voltage, 125 Amp, 16 mm Wire Strip Length, 3.2-3.7 Nm Tightening Torque, 2 Conductor Wiring Format, 2 Connection Points, 1 Level, Screw Terminal, NS 35/15 - NS 35/7,5 Mounting, Polyamide Insulation, Grey, -60 to 110 deg C, UL94 V0 Flammability, 55 mm Height, 15.2 mm Width, 51 mm NS 35/75; 58.5 mm NS 35/15; 56 mm NS 32 Depth

Key Specifications

SKU	PHO3006182
Brand	Phoenix Contact

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Installation terminal blocks with a particularly low-profile design for use in flat distributors The asymmetrical arrangement of the terminal blocks on the DIN rail enables the neutral bus bar to be routed past the terminal blocks
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	3006182
Colour	Grey
Conductor Size	0.75-35mm
Current Rating	125 Amp
Wiring Format	2 Conductor
Height	55 mm
Width	15.2 mm
Depth	51 mm NS 35/75 - 58.5 mm NS 35/15 - 56 mm NS 32
Temperature	-60 to 110 deg C
Terminal Type	Screw
Number of Connection Points	2
Number of Levels	1
Rated Surge Voltage	8 kV
Mounting Method	NS 35/15 - NS 35/75
Wire Strip Length	16 mm
Insulation Material	Polyamide
Number of Conductors	2
Tightening Torque	3.2-3.7 Nm
Flammability	UL94 V0
Voltage Rating	800 Volt
