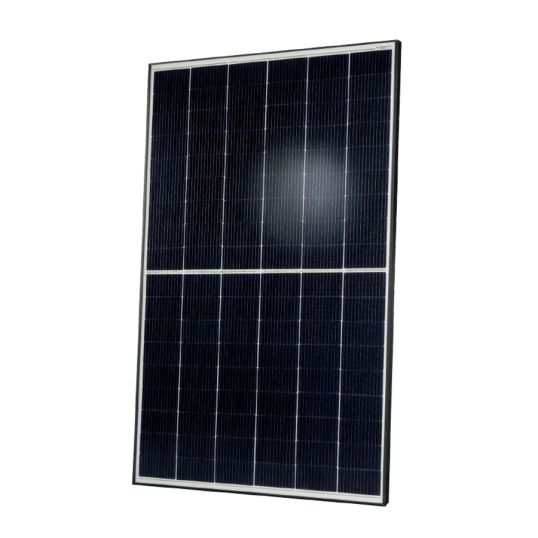

Q Cells Solar Panel 410 Watt Mono-Crystalline Q.MAXX G4+ 108 Half Cells Black Anodised Aluminium Frame 25 Years

$Q_Cells\Q_Cells_QMAXXG4-410.jpg$

Description

Solar Panel, Monocrystalline Cell, 108 Cell, 410 Watt, 31.43 Volt Max. Voltage, 13.04 Amp Max. Current, 37.21 Volt Open Circuit Voltage, 13.61 Amp Short Circuit Current, 1000 Volt Max. System Voltage, >=21.4% Efficiency, +5 Watt/-5 Watt Power Tolerance, Staubli MC4/Hanwha Q CELLS HQC4 Connector, 4 mm Solar Cable; (+) >=1250 mm/(-) >=1250 mm Output Cables, Junction Box: 53-101 mm x 32-60 mm x 15-18 mm w/Bypass Diodes, Anodized Aluminium Frame, 3.2 mm Thermally Pre-Stressed Glass w/Anti-Reflection Technology, -0.34%/K Temperature Coefficient, -40 to 85 deg C, 1692 mm Length, 1134 mm Width, 32 mm Height, 20.9 kg, IEC 61215 2016/61730 2016, DIN EN 50380, 25 Years

Key Specifications

SKU	QCLQMAXXG4+-410
Brand	Q Cells
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	QMAXXG4+-410
Certifications	IEC 61215 2016/61730 2016 DIN EN 50380
Connector Type	Staubli MC4/Hanwha Q CELLS HQC4
Cell Type	Monocrystalline
Efficiency	>=21.4%
Frame Construction	Anodized Aluminium
Front Glass	3.2 mm Thermally Pre-Stressed Glass w/Anti-Reflection Technology
Height	32 mm
Item Weight	20.9 kg
Junction Box	53-101 mm x 32-60 mm x 15-18 mm w/Bypass Diodes
Max. System Voltage	1000 Volt
Max. Current	13.04 Amp
Max. Voltage	31.43 Volt
Number Of Cells	108
Open Circuit Voltage	37.21 Volt
Operating Temperature	-40 to 85 deg C
Power Tolerance	+5 Watt/-5 Watt
Short Circuit Current	13.61 Amp
Output Cables	4 mm Solar Cable; (+) >=1250 mm/(-) >=1250 mm
Temperature Coefficient	-0.34%/K
Warranty	25 Years
Width	1134 mm
Wattage	410 Watt
