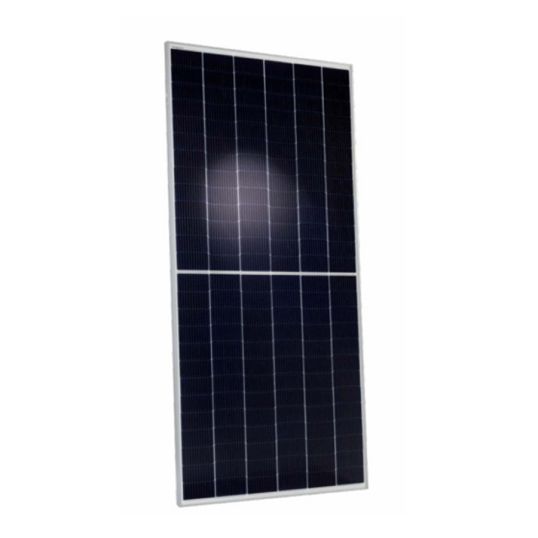

Q Cells Solar Panel 580 Watt Mono-Crystalline Q.PEAK DUO XL-G11 156 Half Cells Anodised Aluminium Frame 12/25 Years

chevron-left

Description

chevron-down
Solar Panel, Monocrystalline Cell, 156 Cell, 580 Watt, 44.9 Volt Max. Voltage, 12.92 Amp Max. Current, 53.64 Volt Open Circuit Voltage, 13.54 Amp Short Circuit Current, 20 Amp Max. Fuse Current, 1500 Volt Max. System Voltage, >=21.2% Efficiency, +5 Watt/-0 Watt Power Tolerance, Staubli MC4-Evo2/Hanwha Q CELLS HQC4 Connector, 4 mm Solar Cable; (+) >=750 mm/(-) >=350 mm Output Cables, Junction Box: 53-101 mm x 32-60 mm x 15-18 mm w/Bypass Diodes, Anodized Aluminium Frame, 3.2 mm Thermally Pre-Stressed Glass w/Anti-Reflection Technology, -0.34%/K Temperature Coefficient, -40 to 85 deg C, 2416 mm Length, 1134 mm Width, 35 mm Height, 31.3 kg, IEC 61215 2016/61730 2016, 12 Years Limited/25 Years Limited Linear Performance, Composite Film Back Cover

Key Specifications

chevron-down
SKU
QCLQPEAKDUOXLG112580
Brand
Q Cells
Range Name
Q Peak Duo
Product Type
Solar Panels

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Breaking the 21% efficiency barrier - Q.ANTUM DUO Z technology with zero gap cell layout boosts module efficiency up to 21.7%
  • Low electricity generation costs - higher yield per surface area, lower BOS costs and up to 175 Watt more module power than standard 144 half-cell modules
  • Enduring high performance - long-term yield security with Anti LID technology, hot-spot protect and traceable quality Tra.Q
  • Extreme weather rating - high-tech aluminium alloy frame, certified for high snow (5400Pa) and wind loads (2400Pa)
  • A reliable investment - inclusive 12-year product warranty and 25-year linear performance warranty
  • State of the art module technology - Q.ANTUM DUO combines cutting edge cell separation and innovative 12-busbar design with Q.ANTUM technology
Standard Pack Size 31
UNSPSC Class 26111600
UOM EA
Vendor Product Q.PEAKDUOXLG11.2580
Cell Type Monocrystalline
Certifications IEC 61215 2016/61730 2016
Connector Type Staubli MC4-Evo2/Hanwha Q CELLS HQC4
Efficiency >=21.2%
Frame Construction Anodized Aluminium
Front Glass 3.2 mm Thermally Pre-Stressed Glass w/Anti-Reflection Technology
Height 35 mm
Item Weight 31.3 kg
Junction Box 53-101 mm x 32-60 mm x 15-18 mm w/Bypass Diodes
Max. Current 12.92 Amp
Max. Fuse Current 20 Amp
Max. Voltage 44.9 Volt
Max. System Voltage 1500 Volt
Number Of Cells 156
Open Circuit Voltage 53.64 Volt
Operating Temperature -40 to 85 deg C
Output Cables 4 mm Solar Cable; (+) >=750 mm/(-) >=350 mm
Please Note Composite Film Back Cover
Power Tolerance +5 Watt/-0 Watt
Short Circuit Current 13.54 Amp
Temperature Coefficient -0.34%/K
Warranty 12 Years Limited/25 years Limited Linear Performance
Wattage 580 Watt
Width 1134 mm
