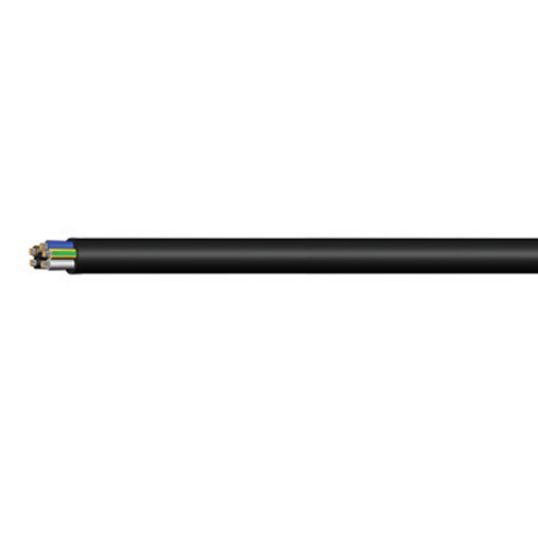

Ralos H07RN-F Power & Control Cable 4 Core + Earth 25mm 600/1000V Copper Rubber/Rubber Black
Description
Flexible Control Cable, 25 mm, Class 5 Tinned Annealed Copper, 0.6-1 kV, 4 Core + Earth, 180/0.41 mm Strands, 34 mm Overall Diameter, Static 136 mm Flexible 78 mm Mech Load 104 mm Bend Radius, 1.4 mm Insulation Thickness, 4.4 mm Sheath Thickness, 0.795 Ohm/km Conductor Resistance, Brown/Black/Grey/Green/Yellow Core, EPR Insulation, EM2 CPE Sheath, Black Sheath, Static -40 to 90 deg C Flexible -25 to 90 deg C, BS EN 50525-2-21 IEC 60092-353 AS/NZS 5000.1 IEC 60331-2
Key Specifications
| SKU |
RALRB5G25
|
|---|---|
| Brand |
Ralos
|
| Range Name |
H07RN-F
|
| Product Type |
Flexible Control Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | RB5G25 |
| Bend Radius | Static 136 mm/Flexible 78 mm/Mech Load 104 mm |
| Conductor Resistance | 0.795 Ohm/km |
| Core Colours | Brown/Black/Grey/Green/Yellow |
| Conductor Size | 25 mm |
| Conductor Type | Class 5 Tinned Annealed Copper |
| Insulation Material | EPR |
| Insulation Thickness | 1.4 mm |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 34 mm |
| Sheath Colour | Black |
| Sheath Material | EM2 CPE |
| Sheath Thickness | 4.4 mm |
| Standards | BS EN 50525-2-21 IEC 60092-353 AS/NZS 5000.1 IEC 60331-2 |
| Stranding | 180/0.41 mm |
| Temperature | Static -40 to 90 deg C Flexible -25 to 90 deg C |
| Voltage | 0.6-1 kV |
