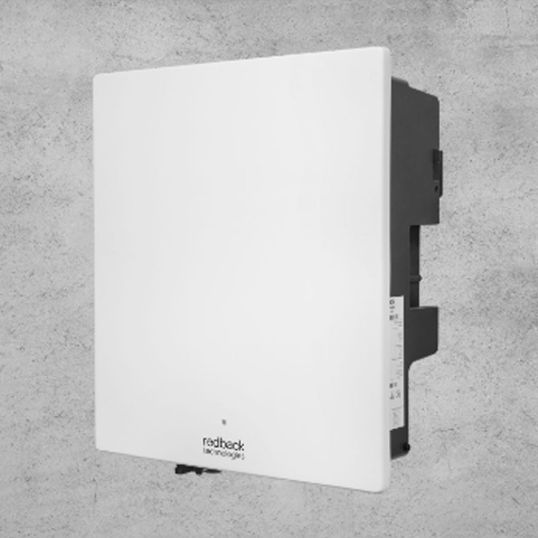

Redback Smart Solar Inverter 2MPPT Single Phase 10kVA

chevron-left

Description

chevron-down
Solar Inverter, 1 Phase Phase, 10000 VA DC Input, 550 Volt DC DC Input, 70-540 Volt DC DC MPPT Voltage Range, 26 Amp DC Max. Input, 2 MPPTs, 10000 VA AC Output, 10000 VA AC Max. Apparent, 230 Volt AC, 50 Hz, 45.5 Amp AC Output, 0.8 Lagging-0.8 Leading Power Factor, <3% Total Harmonic Distortion, 0.975 Efficiency, 0.968 European Weighted Efficiency, Transformerless, 0-4000 mtr Max. Altitude, Bluetooth/Wi-Fi/Ethernet (Optional)/LTE (Optional) NFC, Coded/Coloured LED Display, <30 dBA, IP65, -25 to 60 deg C

Key Specifications

chevron-down
SKU
RDKSI10000
Brand
Redback
Product Type
Inverters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Easy commissioning with the RedbackInstall App
  • 10 years Australia supported warranty
  • Suitable for indoor and outdoor Installation
  • Smart load control
  • Smart meter and Wi-Fi dongle included
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product SI10000
AC Max. Apparent Power 10000 VA
AC Nominal Voltage 230 Volt AC
AC Operating Frequency 50 Hz
AC Output Current 45.5 Amp
AC Output Power 10000 VA
Communication Port Bluetooth/Wi-Fi/Ethernet (Optional)/LTE (Optional) NFC
DC Input Power 10000 VA
DC Input Voltage 550 Volt DC
DC Max. Input Current 26 Amp
DC MPPT Voltage Range 70-540 Volt DC
Depth 192 mm
Display Type Coded/Coloured LED
Efficiency 0.975
European Weighted Efficiency 0.968
IP Rating IP65
Height 531 mm
Max. Operating Altitude 0-4000 mtr
Noise Level <30 dBA
Number of MPPTs 2
Operating Temperature -25 to 60 deg C
Phase 1 Phase
Power Factor 0.8 Lagging-0.8 Leading
Relative Humidity 0-100%
Topology Transformerless
Total Harmonic Distortion <3%
Width 400 mm
