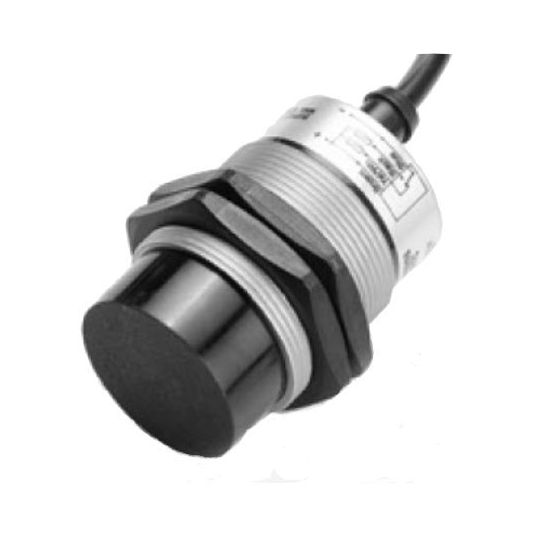

Rhomberg Proximity Switch Inductive Sensing Shielded Flush M40 10-60VDC NPN 1NO-1NC 2m L

chevron-left

Description

chevron-down
Proximity Switch Inductive Sensing Shielded Flush, Tubular, Sensing Range: 20 mm, NPN, 10-60 Volt DC, 400 mA Load, 1NO/1NC, 2 mtr Cable, Flush Mount, IP68, Metal, -20 to 70 deg C, 40 mm Diameter, Length: 60 mm

Key Specifications

chevron-down
Barcode (EAN-13)
9324684221355
SKU
RHORI5-4020F-NX
Brand
Rhomberg
Range Name
RI5
Product Type
Proximity Sensors

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product RI54020FNX
Cable Size 2 mtr
Current 400 mA
Contact Configuration 1 Normally Opened & 1 Normally Closed
Diameter 40 mm
IP Rating IP68
Mounting Method Flush
Material Metal
Operating Voltage 10-60 Volt DC
Output Function NPN
Sensing Range 20 mm
Shape Tubular
Temperature -20 to 70 deg C
