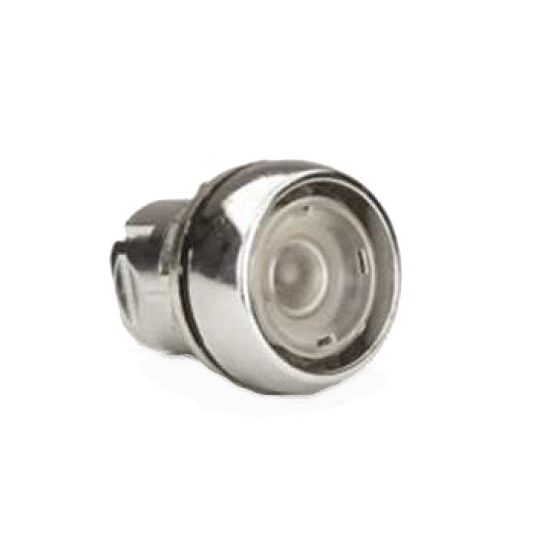

Sprecher+Schuh Pushbutton Actuator Only Flush Head Metal Body Illuminated Latching/Maintained 22.5mm Panel Mount

Description

Pushbutton Actuator Only Flush Head Metal Body, Size: 22.5 mm, Illuminated, Latching/Maintained, Flush Head, Tightening Torque: 4.4 N/m, IP65, IP66, Mounting Diameter: 22.5 mm, Panel Mount, Stainless Steel Housing, Zinc Bezel, Finish: Chrome-Plated, -25 to 70 deg C,Without Cap

Key Specifications

SKU	S&SD7ML-FA9
Brand	Sprecher+Schuh
Range Name	D7
Product Type	P/B Actuators Flush

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel. Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments D7M has a die-cast zinc housing and mounting ring for rugged durability, finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D7MLFA9
Head Type	Flush
Mounting Diameter	22.5 mm
IP Rating	IP65/66
Mounting Method	Panel
Operator Action	Illuminated Latching/Maintained Action
Please Note	Without Cap
Size	22.5 mm
Temperature	-25 to 70 deg C
Tightening Torque	4.4 N/m
