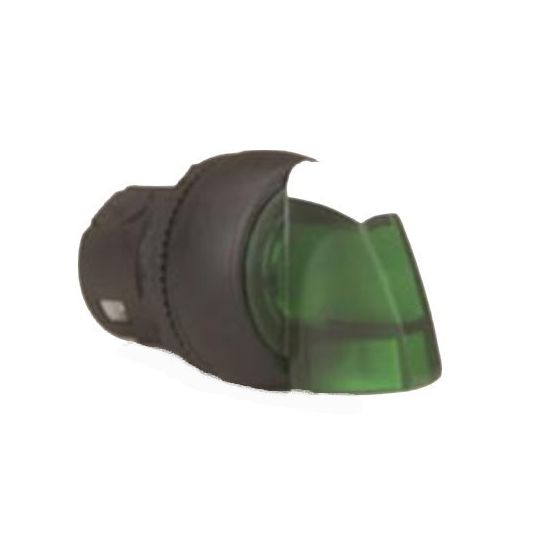

Rotary Selector Actuator 3 Position Plastic Body Illuminated Stayput/Latched/Maintained Green 22.5mm Panel Mount

$Sprecher\Sprecher_D7PLSM33.jpg$

Description

Rotary Selector Actuator, Stayput/Latched/Maintained, 22.5mm Mounting Hole, 3 Position, Short Lever Operator, Tightening Torque: 1.7 N/m, 300000 Cycles, Screw Clamp Terminal, IP65, IP66, NEMA ICS-5, Panel Mount, Thermoplastic, Glass-Filled Nylon/PA6/PA66, Silver Nickel (Ag/Ni), Green, -25 to 70 deg C, 29.8 mm Height, 27.9 mm Width

Key Specifications

Barcode (EAN-13)	9321807233202
SKU	S&SD7P-LSM33
Brand	Sprecher+Schuh
Range Name	D7
Product Type	Selector Actuators Rotary

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments D7M has a die-cast zinc housing and mounting ring for rugged durability Finished with corrosion resistant chrome plating, the D7M also features a captive shiny metal bezel for a polished appearance
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D7PLSM33
Colour	Green
Contact Material	Silver Nickel (Ag/Ni)
Height	29.8 mm
IP Rating	IP65/66
Mounting Diameter	22.5 mm
Mounting Method	Panel
Number of Positions	3
NEMA Rating	NEMA ICS-5
Operating Cycles	300000 Cycles
Operator Action	Stayput/Latched/Maintained
Operator Type	Short Lever
Temperature	-25 to 70 deg C
Terminal Connection	Screw Clamp
Tightening Torque	1.7 Nm
Width	27.9 mm
