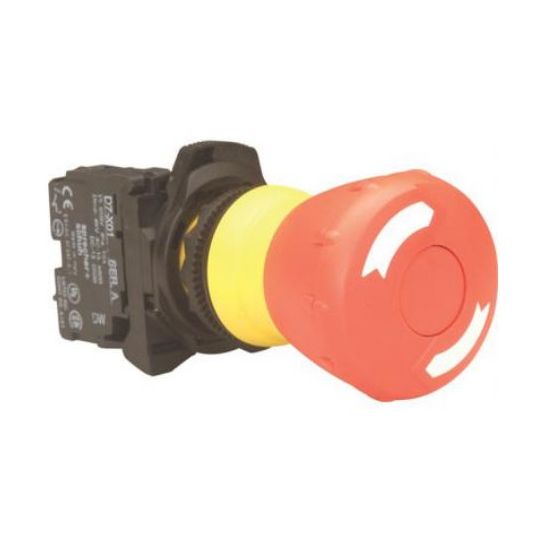

Sprecher+Schuh Emergency Stop Actuator Only 40mm Head Plastic Body k 1N.C Twist to Release Action 22.5mm Panel Mount

Description

Emergency Stop Actuator, Mushroom Actuator Head, 1 Normally Closed Configuration, Emergency Stop Operator, Twist to Release Operator Action, 1.7 Nm Tightening Torque, Screw Terminal, Surface/Panel Mounting, 22.5 mm Mounting Hole Diameter, IP65/66/69, Silver Nickel (Ag/Ni) Contact, Red, -25 to 70 deg C, 40 mm Diameter

Key Specifications

Barcode (EAN-13)	9321807216120
SKU	S&SD7P-MT44-PX01
Brand	Sprecher+Schuh
Range Name	D7
Product Type	P/B Actuators Emergency Stop

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	D7 pilot devices offer maximum flexibility and a wide choice for all 22.5 mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations Aesthetically appealing and modularly designed to make assembly and interchangeability easy Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments D7P is a plastic operator with a captive black plastic front bezel Constructed of high grade thermoplastics, the D7P operators provide strong chemical resistance making them suitable for use in different environments
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	D7PMT44PX01
Actuator Head	Mushroom
Contact Configuration	1 Normally Closed
Colour	Red
Contact Material	Silver Nickel (Ag/Ni)
Diameter	40 mm
IP Rating	IP65/66/69
Mounting Hole Diameter	22.5 mm
Mounting Method	Surface/Panel
Operator Type	Emergency Stop
Operator Action	Twist to Release
Tightening Torque	1.7 Nm
Temperature	-25 to 70 deg C
Terminal Connection	Screw
