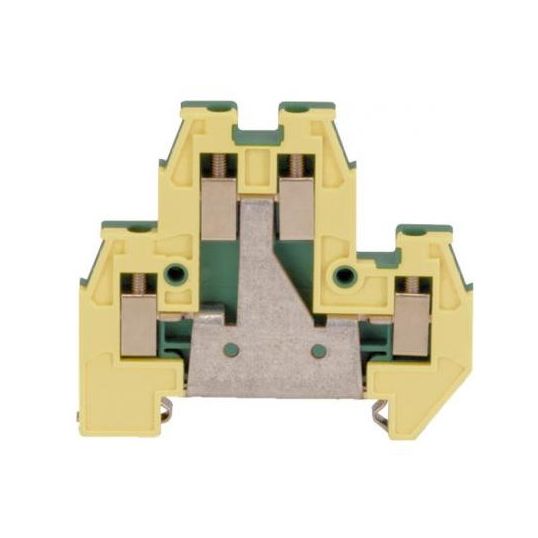

Sprecher+Schuh Rail Earth Terminal Block Screwed 2 Wire 4mm Green/Yellow

$Sprecher\Sprecher_V7WDG4C.jpg$

Description

Earth Terminal Block, 4 mm, 4 Conductors, 500 Volt, 32 Amp, 10 mm Wire Strip Length, 0.6 Nm Tightening Torque, 2 Conductor Wiring Format, 4 Connection Points, 2 Level, Terminal Marking Position, Screw Terminal, Rail Mounting, Green/Yellow, -40 to 90 deg C, 75 mm Height, 48.8 mm Width, 6 mm Depth

Key Specifications

SKU	S&SV7-WDG4C
Brand	Sprecher+Schuh
Product Type	Rail Earth Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed for ease of wiring, secure connections and durability Comprehensive range, offering a wide array of terminal types for most circuits and functions Terminals accommodate a full range of wire sizes from 0.5 to 70 sq-mm wire cross section Cone shaped guide allows easy wire insertion Specialty terminals including two-level, grounding, diode, isolating, fuse, sensor and thermocouple terminals
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	V7WDG4C
Colour	Green/Yellow
Conductor Size	4.0mm
Current Rating	32 Amp
Depth	6 mm
Height	75 mm
Marking Position	Terminal
Mounting Method	Rail
Number of Conductors	4
Number of Connection Points	4
Number of Levels	2
Temperature	-40 to 90 deg C
Voltage Rating	500 Volt
Terminal Type	Screw
Tightening Torque	0.6 Nm
Width	48.8 mm
Wire Strip Length	10 mm
Wiring Format	2 Conductor
