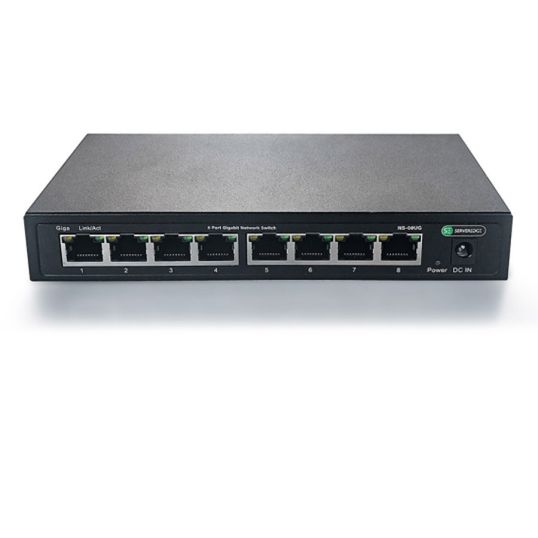

Serveredge Ethernet Switch 10/100/1000Base TX 8 Port Gigabit Unmanaged

chevron-left
loader
Loading...

Description

chevron-down
The Serveredge NS-08UG, 10/100/1000Base-TX, 8 Port, Gigabit Unmanaged Ethernet Switch provides easy, reliable, and affordable network connectivity for small to large offices. With the Serveredge unmanaged plug-and play- switched, you can expand your network to multiple devices instantly. The automated features of this gigabit switch make installation plug-and-play and hassle-free. No configuring is required. Auto MDI / MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10,100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size enclosure makes it ideal for desktops with limited space, dynamic LED lights provide real-time work status and basic fault diagnosis.

Key Specifications

chevron-down
Barcode (EAN-13)
9352399004291
SKU
SEVNS-08UG
Brand
Serveredge

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Innovative energy-efficient technology saves power up to 40%
  • 100% Data filtering rate eliminates all error packets
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Support the port N-Way Auto-Negotiation, Store and Forward
  • Compact size design for desktops
  • Plug and Play design simplifies installation
Standard Pack Size 1
UNSPSC Class 43223300
UOM EA
Vendor Product NS-08UG
Current 0.5 Amp
Height 28 mm
Number Of Ways 8 Way
Mounting Method Desktop
Product Type simple
Temperature 10 to 55 deg C
Voltage 12 Volt
Width 75 mm
