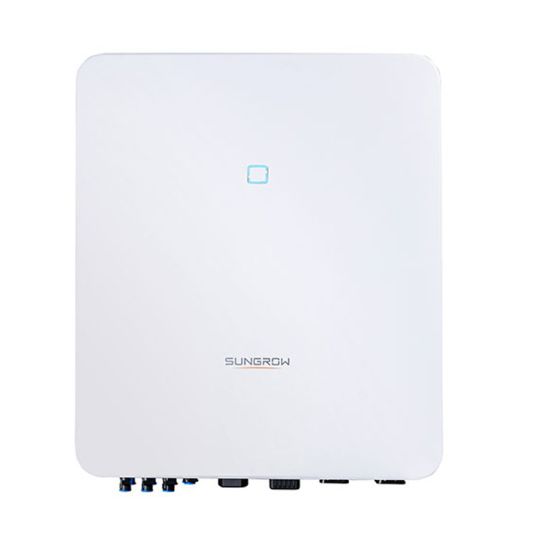

Sungrow Hybrid Inverter with WiFi DC Switch and EPS Built-in 10000 Watt 2 MPPT 3 PH 220/415V 3/N/PE 14.5A IP65
Description
Hybrid Solar Inverter, 3 Phase Phase, 15000 Watt DC Input, 1000 Volt DC Input, 600 Volt DC Nominal, 200-950 Volt DC MPPT Voltage Range, 250 Volt DC Start-up, 48 Amp DC Max. Input, 2 MPPTs, 10000 Watt AC Output, 10000 VA AC Max. Apparent, 270-480 Volt, 220-415 Volt, 50/60 Hz, 14.5 Amp AC Output, >0.99 Power Factor, <3% Total Harmonic Distortion, 0.984 Efficiency, 0.979 European Weighted Efficiency, 4000 mtr Max. Altitude, Battery: Lithium-Ion, RS485/WLAN/Ethernet/CAN/4xDI/1xDO, LED Display, Natural Convection Cooling, IP65, -25 to 60 deg C
Key Specifications
| SKU |
SGWSH10.0RT
|
|---|---|
| Brand |
Sungrow
|
| Product Type |
Inverters
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 6 |
|---|---|
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | SH10.0RT |
| AC Max. Apparent Power | 10000 VA |
| AC Nominal Voltage | 220-415 Volt |
| AC Operating Frequency | 50/60 Hz |
| AC Operating Voltage | 270-480 Volt |
| AC Output Current | 14.5 Amp |
| AC Output Power | 10000 Watt |
| Battery | Lithium-Ion |
| Communication Port | RS485/WLAN/Ethernet/CAN/4xDI/1xDO |
| Cooling Method | Natural Convection |
| DC Input Power | 15000 Watt |
| DC Input Voltage | 1000 Volt |
| DC Max. Input Current | 48 Amp |
| DC MPPT Voltage Range | 200-950 Volt |
| DC Nominal Voltage | 600 Volt |
| DC Start-up Voltage | 250 Volt |
| Depth | 170 mm |
| Display Type | LED |
| Efficiency | 0.984 |
| European Weighted Efficiency | 0.979 |
| IP Rating | IP65 |
| Height | 540 mm |
| Max. Operating Altitude | 4000 mtr |
| Number of MPPTs | 2 |
| Operating Temperature | -25 to 60 deg C |
| Phase | 3 Phase |
| Power Factor | >0.99 |
| Relative Humidity | 0-100% |
| Total Harmonic Distortion | <3% |
| Width | 460 mm |
