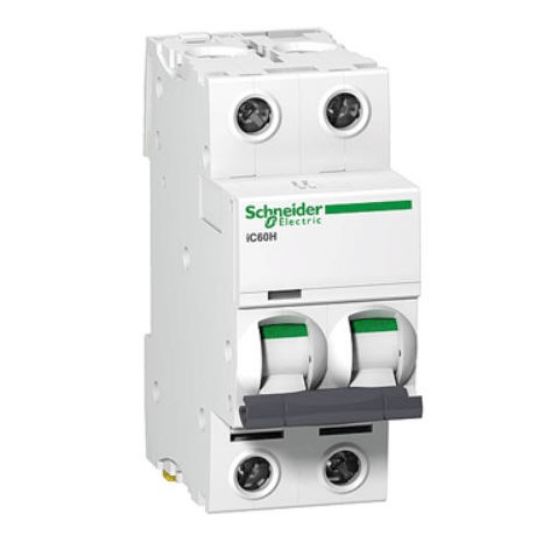

Schneider Miniature Circuit Breaker C Curve 6Amp 10 kA 2Pole 2Module 36mm DIN Rail/Clip-On Mount
Description
Miniature Circuit Breaker C Curve, 440 Volt, 6 Amp, 50/60 Hz, 10 kA Interrupt Capacity, 2 Module 36 mm, 2 Pole, Toggle Actuator, 2 Nm Tightening Torque, 10000 Cycles Electrical Life, IP20, DIN Rail/Clip-On Mounting, White, 35 to 70 deg C, 85 mm Height, 36 mm Width, 78.5 mm Depth
Key Specifications
| Barcode (EAN-13) |
3606480514838
|
|---|---|
| SKU |
SHNA9F54206
|
| Brand |
Schneider
|
| Range Name |
Acti 9 iC60H
|
| Product Type |
Mini Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | A9F54206 |
| Actuator Type | Toggle |
| Colour | White |
| Current | 6 Amp |
| Depth | 78.5 mm |
| Electrical Life | 10000 Cycles |
| Frequency | 50/60 Hz |
| Height | 85 mm |
| Interrupt Capacity | 10 kA |
| IP Rating | IP20 |
| Modules | 2 Module 36 mm |
| Mounting Method | DIN Rail/Clip-On |
| Number Of Poles | 2 Pole |
| Temperature | 35 to 70 deg C |
| Tightening Torque | 2 Nm |
| Voltage | 440 Volt |
| Width | 36 mm |
