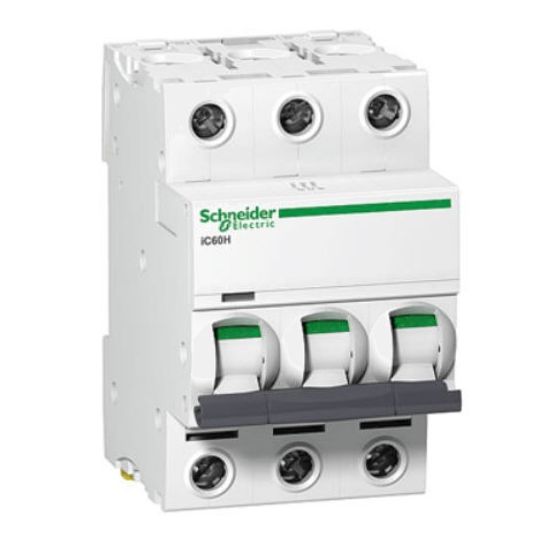

Schneider Miniature Circuit Breaker C Curve 50Amp 10 kA 3Pole 3Module 54mm DIN Rail/Clip-On Mount
Description
Miniature Circuit Breaker C Curve, 440 Volt, 50 Amp, 50/60 Hz, 10 kA Interrupt Capacity, 3 Module 54 mm, 3 Pole, Toggle Actuator, 3.5 Nm Tightening Torque, 10000 Cycles Electrical Life, IP20, DIN Rail/Clip-On Mounting, White, 35 to 70 deg C, 85 mm Height, 54 mm Width, 78.5 mm Depth
Key Specifications
| Barcode (EAN-13) |
3606480515026
|
|---|---|
| SKU |
SHNA9F54350
|
| Brand |
Schneider
|
| Range Name |
Acti 9 iC60H
|
| Product Type |
Mini Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | A9F54350 |
| Actuator Type | Toggle |
| Colour | White |
| Current | 50 Amp |
| Depth | 78.5 mm |
| Electrical Life | 10000 Cycles |
| Frequency | 50/60 Hz |
| Height | 85 mm |
| Interrupt Capacity | 10 kA |
| IP Rating | IP20 |
| Modules | 3 Module 54 mm |
| Mounting Method | DIN Rail/Clip-On |
| Number Of Poles | 3 Pole |
| Temperature | 35 to 70 deg C |
| Tightening Torque | 3.5 Nm |
| Voltage | 440 Volt |
| Width | 54 mm |
