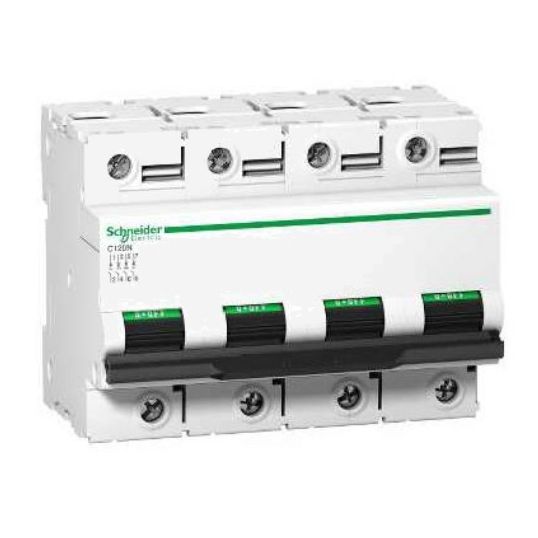

Schneider Miniature Circuit Breaker B Curve 80Amp 15 kA 4Pole 6Module 35mm Symmetrical DIN Rail/Clip-On Mount

Description

Miniature Circuit Breaker B Curve, 380-415, 220-240 Volt AC, 440, 230-400 Volt AC, <= 500 Volt DC, 80 Amp, 50/60 Hz, Interrupt Capacity: 15 kA, Number of Modules: 6, 108mm Module Width, Number of Poles: 4, Trip Characteristic: B Curve, Toggle Actuator, 3.5 N/m Tightening Torque, Tunnel Terminal, IP20 Conforming to IEC 60529, 5000 Cycles, 1.5 to 35 mm Flexible, 1 to 50 mm Rigid Cable, 35mm Symmetrical DIN Rail, Clip-On, White,-30 to 60 deg C, 81mm Height, 108mm Width, 73mm Depth

Key Specifications

Barcode (EAN-13)	3606480380068
SKU	SHNA9N18435
Brand	Schneider
Range Name	Acti 9 iC120H
Product Type	Mini Circuit Breakers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A9N18435
Actuator Type	Toggle
Cable Size	1.5 to 35 sq-mm Flexible/1 to 50 sq-mm Rigid
Colour	White
Current	80 Amp
Depth	73mm
Electrical Life	5000 Cycles
Frequency	50/60 Hz
Height	81mm
Interrupt Capacity	15 kA
IP Rating	IP20
Modules	6 Module 108mm
Mounting Method	DIN Rail/Clip-On
Number Of Poles	4 Pole
Temperature	-30 to 60 deg C
Terminal Type	Tunnel
Tightening Torque	3.5 N/m
Voltage	380-415/220-240 Volt AC/440/230-400 Volt AC/<= 500 Volt DC
Width	108mm
