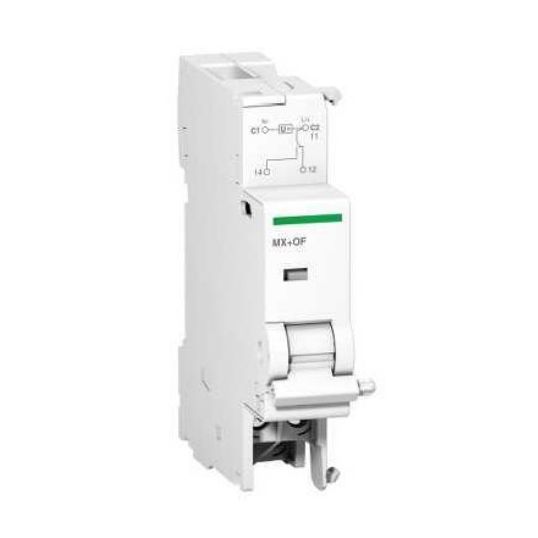

Schneider Shunt Trip 3 Amp at 415 VAC 6 Amp at <= 240 VAC DIN Rail Mount Screw Clamp White Acti 9 iDPN C120 C40 C60H-DC
Description
Shunt Trip, 3 Amp at 415 Volt AC, 6 Amp at <= 240 Volt AC, 100 to 415 Volt AC 50/60 Hz, 110 to 130 Volt DC, 1 C/O, Screw Clamp Terminal Connection, 35mm Symmetrical DIN Rail, White,-25 to 50 deg C, 82.5mm Height, 18mm Width, 73.5mm Depth, For Use With: Acti 9 iDPN, C120, C40, C60H-DC, C60NA-DC, C60PV-DC, DPN Vigi
Key Specifications
| Barcode (EAN-13) |
3606480382956
|
|---|---|
| SKU |
SHNA9N26946
|
| Brand |
Schneider
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | A9N26946 |
| Colour | White |
| Contact Configuration | 1 Changover |
| Current | 3 Amp |
| Depth | 73.5mm |
| For Use With | Acti 9 iDPN/C120/C40/C60H-DC/C60NA-DC/C60PV-DC/DPN Vigi |
| Height | 82.5mm |
| Mounting Method | DIN Rail |
| Product Type | simple |
| Terminal Connection | Screw Clamp |
| Temperature | -25 to 50 deg C |
| Voltage | 100-415 Volt AC/110-130 Volt DC |
| Width | 18mm |
