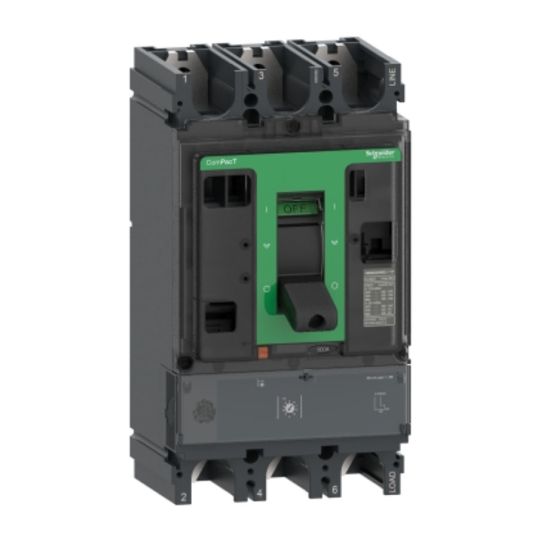

Schneider ComPacT NSX630H Circuit Breaker 70kA 415VAC 3 Pole 3D 500A MicroLogic 1.3M Trip Unit
Loading...
Description
Circuit Breaker, 415 Volt AC, 500 Amp, 50/60 Hz, 70 kA Interrupt Capacity, 3 Pole, MicroLogic 1.3M, IP40, -25 to 70 deg C, 140mm Width x 255mm Height x 110mm Depth
Key Specifications
| SKU |
SHNC63H31M500
|
|---|---|
| Brand |
Schneider
|
| Range Name |
Compact NSX630H
|
| Product Type |
MCCBs
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | C63H31M500 |
| Current | 500 Amp |
| Frequency | 50/60 Hz |
| Interrupt Capacity | 70 kA |
| IP Rating | IP40 |
| Number Of Poles | 3 Pole |
| Temperature | -25 to 70 deg C |
| Trip Type | MicroLogic 1.3M |
| Voltage | 415 Volt |
