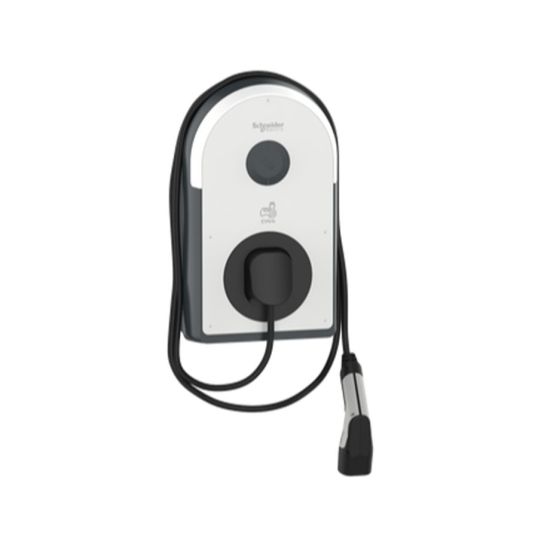

Schneider EVlink Pro AC Charging Station 22kW 32A 3 Phase 3 Pole+N T2 Attached Cable RDC-DD 6mA MID Meter

Description

Charging Station, 380-415 Volt AC Input Voltage, 380-415 Volt AC Output Voltage, 32 Amp Output Current, 50/60 Hz Input Frequency, 22 kW Power Output, 3 Phase, 2000 mtr Without Derating Max. Altitude, OCPP 1.6, Ethernet, Bluetooth, 3G/4G Modem Optional, Modbus TCP, 2 RJ45 For Ethernet LAN Connector, IP55, IK10, -30 to 50 deg C, -40 to 80 deg C Storage Temperature, 5-95% Relative Humidity, EV Ready, CE, EN/IEC 61851-1:ed. 3, EN/IEC 62196-1:ed. 2, EN/IEC 62196-2:ed. 1, 529mm Height, 317mm Width, 183mm Depth, 10 kg

Key Specifications

Barcode (EAN-13)	3606482213234
SKU	SHNEVB3S22NC0M
Brand	Schneider
Range Name	Evlink
Product Type	AC Charging Station

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	25175000
UOM	EA
Vendor Product	EVB3S22NC0M
Communication Port	Ethernet/Bluetooth/3G-4G Modem Optional/Modbus TCP
Certifications	EV Ready/CE
Communication Protocol	OCPP 1.6
Connector Type	2 RJ45
Depth	183 mm
Height	529 mm
IK Rating	IK10
Input Voltage	380-415 Volt
Input Frequency	50/60 Hz
IP Rating	IP55
Item Weight	10 kg
Max. Operating Altitude	2000 mtr Without Derating
Operating Temperature	-30 to 50 deg C
Output Current	32 Amp
Output Voltage	380-415 Volt
Phase	3 Phase
Power Output	22 kW
Relative Humidity	5-95%
Standards	EN/IEC 61851-1:ed. 3; EN/IEC 62196-1:ed. 2; EN/IEC 62196-2:ed. 1
Width	317 mm
Storage Temperature	-40 to 80 deg C
