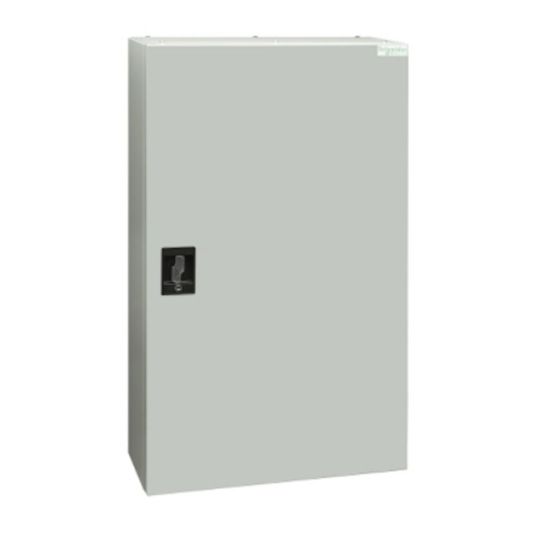

Schneider Acti 9 Standard Distribution Board with Isobar Chassis 36 Modules 160A IP42 Metal Grey
Description
Standard Distribution Board with Isobar Chassis, 160 Amp, 3 Pole, 36 Modul, 25 kA Switchboard Capacity, 3P+N Configuration, External Plain Door, Surface Mount, IP42, Metal, Grey, 1000mm Height x 580mm Width x 235mm Depth
Key Specifications
| SKU |
SHNMB236DM1
|
|---|---|
| Brand |
Schneider
|
| Range Name |
Acti 9
|
| Product Type |
Distribution Boards
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121100 |
| UOM | EA |
| Vendor Product | MB236DM1 |
| Colour | Grey |
| Current | 160 Amp |
| Dimensions | 1000mm Height x 580mm Width x 235mm Depth |
| Door Type | External Plain |
| IP Rating | IP42 |
| Material | Metal |
| Mounting Method | Surface |
| Number Of Poles | 3 Pole |
