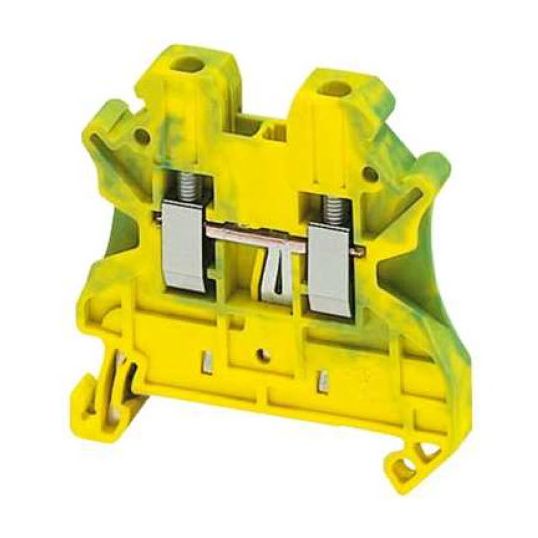

Schneider Rail Terminal Block Screwed 2 Wire 1 Level 2.5mm Green/Yellow Polyamide 66
Description
Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 2.5 sq-mm nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with special enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Special, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 deg C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
Key Specifications
| Barcode (EAN-13) |
3606480531842
|
|---|---|
| SKU |
SHNNSYTRV22PE
|
| Brand |
Schneider
|
| Range Name |
Linergy
|
| Product Type |
Rail Terminal Blocks
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | NSYTRV22PE |
| Colour | Green/Yellow |
| Conductor Size | 2.5mm |
| Depth | 5.2 mm |
| Flammability | UL94 V0 |
| Insulation Material | Polyamide 66 |
| Height | 47.7 mm |
| Mounting Method | Clip On |
| Number of Conductors | 2 |
| Number of Connection Points | 2 |
| Number of Levels | 1 |
| Terminal Type | Screw |
| Temperature | -40 to 130 deg C |
| Tightening Torque | 0.5-0.6 Nm |
| Width | 47.5 mm |
| Wire Entry Orientation | Side |
| Wire Strip Length | 9 mm |
| Wiring Format | 2 Conductor Through |
