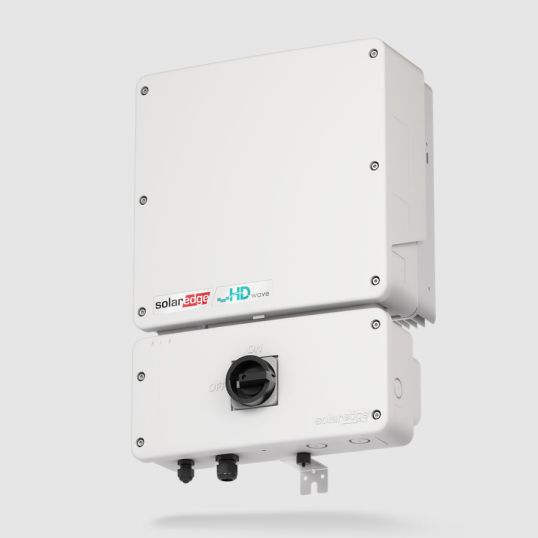

SolarEdge Solar Inverter HD-Wave Genesis Single Phase 10kW

chevron-left

Description

chevron-down
Solar Inverter, 1 Phase Phase, 20000 Watt DC Input, 480 Volt DC Input, 400 Volt DC Nominal, 25.5 Amp DC Max. Input, 10 kW AC Output, 10000 VA AC Max. Apparent, 184-264.5 Volt AC, 220-230 Volt, 50/60 Hz +/-5, 45.5 Amp AC Output, 1 (Adjustable 0.8 Leading-0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 0.992 Efficiency, 0.99 European Weighted Efficiency, 3000 mtr Max. Altitude, RS485 Ethernet Wi-Fi (Optional), Natural Convection Cooling, <50 dBA, Wall Mounting, IP65, -40 to 60 deg C

Key Specifications

chevron-down
SKU
SLRSE10000HAUL00BEU4
Brand
SolarEdge
Range Name
Genesis
Product Type
Inverters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Simple string design for inverter up to 5 kW AC
  • Faster, simpler installation with maximum design flexibility
  • Record breaking inverter efficiency for more energy production
  • Specially designed to work with SolarEdge power optimiser for higher energy yield
  • Battery ready solution supporting On-Grid storage
  • IP65 rated suitable for outdoor & indoor installation
  • Rapid inverter commissioning via Smartphone using SetApp
  • Advanced safety features including SafeDC and integrated arc fault protection
  • Compact, lightweight and easy to install
  • Supports Wi-Fi communication(Sold separately)
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product SE10000H-AUL00BEU4
AC Max. Apparent Power 10000 VA
AC Nominal Voltage 220-230 Volt
AC Operating Frequency 50/60 Hz +/-5
AC Operating Voltage 184-264.5 Volt AC
AC Output Current 45.5 Amp
AC Output Power 10 kW
Communication Port RS485 Ethernet Wi-Fi (Optional)
Cooling Method Natural Convection
DC Input Power 20000 Watt
DC Input Voltage 480 Volt
DC Max. Input Current 25.5 Amp
DC Nominal Voltage 400 Volt
Depth 185 mm
Efficiency 0.992
European Weighted Efficiency 0.99
IP Rating IP65
Height 540 mm
Max. Operating Altitude 3000 Mtr
Mounting Method Wall
Noise Level <50 dBA
Operating Temperature -40 to 60 deg C
Phase 1 Phase
Power Factor 1 (Adjustable 0.8 Leading-0.8 Lagging)
Total Harmonic Distortion <3%
Width 370 mm
