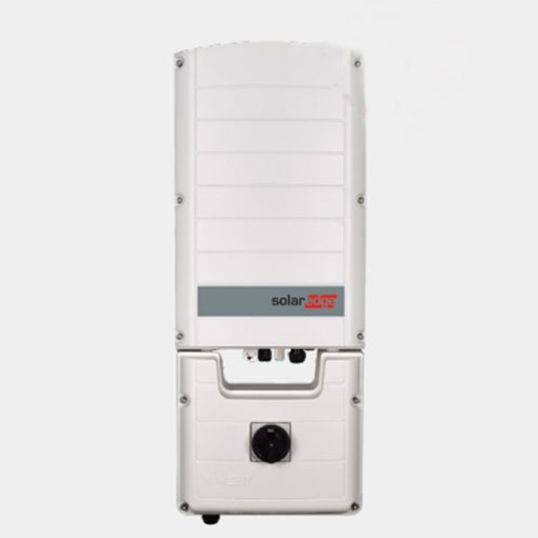

SolarEdge Solar Inverter Three Phase 10kW RS485/Ethernet/Wi-Fi

chevron-left

Description

chevron-down
Solar Inverter Hybrid, 3 Phase Phase, 13500 Watt DC Input, 450 Volt DC Input, 28 Amp DC Max. Input, 10 kW AC Output, 10000 VA AC Max. Apparent, 184-264.7 Volt, 230-400 Volt 3/N/PE, 50 Hz +/-5, 16 Amp AC Output, 0.978 Efficiency, 0.974 European Weighted Efficiency, Transformerless/Ungrounded, 2x RS485/Ethernet/Wi-Fi/ZigBee for Smart Energy(Optional), Fan Cooling, <50 dBA, Bracket Mounting, IP65, -40 to 60 deg C

Key Specifications

chevron-down
SKU
SLRSE10K-AUBTEBEU4
Brand
SolarEdge
Product Type
Inverters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Provides maximum design flexibility, enabling fewer long strings
  • Supports optional smart energy devices and expansion of system capabilities
  • Single vendor solution for Seamless operation of all system component and one address for warranty and service issues
  • Built-in module level monitoring for grater visibility-into system performance
  • Advanced safety features including SafeDC and integrated arc fault protection
  • Quick inverter commissioning directly from smartphone using SolarEdge SetApp
  • Suitable for outdoor or indoor Installation
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product SE10K-AUBTEBEU4
AC Max. Apparent Power 10000 VA
AC Nominal Voltage 230-400 Volt 3/N/PE
AC Operating Frequency 50 Hz +/-5
AC Operating Voltage 184-264.7 Volt
AC Output Current 16 Amp
AC Output Power 10 kW
Communication Port 2x RS485/Ethernet/Wi-Fi/ZigBee for Smart Energy(Optional)
Cooling Method Fan
DC Input Power 13500 Watt
DC Input Voltage 450 Volt
DC Max. Input Current 28 Amp
Depth 260 mm
Efficiency 0.978
European Weighted Efficiency 0.974
IP Rating IP65
Height 775 mm
Mounting Method Bracket
Noise Level <50 dBA
Operating Temperature -40 to 60 deg C
Phase 3 Phase
Topology Transformerless/Ungrounded
Width 315 mm
