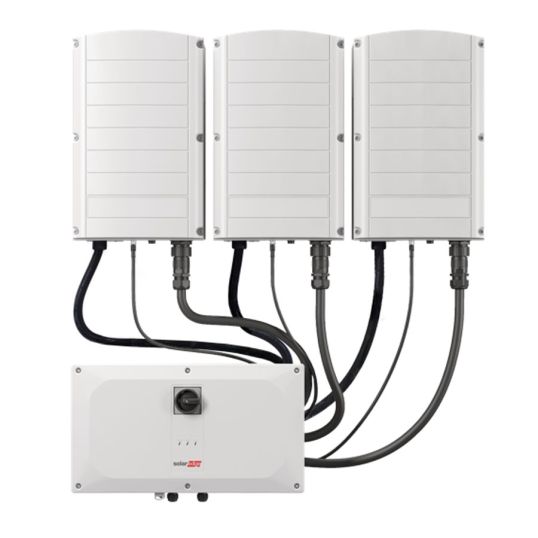

Solar Edge Three Phase Inverter with Synergy Technology Manager 82.8kW AU DC Switch

$Solar_Edge\SolarEdge_SE82.8K-AU00IBNV4.jpg$

Description

SolarEdge 3P Inverter with Synergy Tech 82.8kW AU DC Switch

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Pre-commissioning feature for automated validation of system components and wiring Easy 2-person installation with lightweight, modular design Independent operation of each inverter unit enables higher uptime and easy serviceability Built-in Thermal Sensors detect faulty wiring ensuring enhanced protection and safety Built-in Arc Fault Protection Built-in PID Mitigation for maximised system performance Monitored and field replaceable surge protection devices Built-in Module level monitoring with Ethernet or cellular communication
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SE82.8K-AU00IBNV4
AC Max. Apparent Power	82800 VA
AC Nominal Voltage	230-400 Volt AC
AC Operating Frequency	50 +/- 5%
AC Operating Voltage	184-264 Volt
AC Output Current	120 Amp (Per Phase)
AC Output Power	82.8 kW
Communication Port	2x RS485 Ethernet Wi-Fi (Optional)/Cellular (Optional)
Cooling Method	Fan
DC Input Power	144900 Watt
DC Input Voltage	DC to DC 830 Volt/DC to GND 415 Volt
DC Max. Input Current	3x 40 Amp
DC Operating Voltage	680-830 Volt DC
DC Switch	Provided
Depth	273 mm
Efficiency	98.30%
IP Rating	IP65
Height	558 mm
European Weighted Efficiency	98%
Max. Operating Altitude	2000 Mtr
Noise Level	<67 dBA
Mounting Method	Bracket
Phase	3 Phase
Operating Temperature	-40 to 60 deg C
Power Factor	+/-0.8 to 1
Topology	Transformerless/Ungrounded
Total Harmonic Distortion	<3%
Width	328 mm
