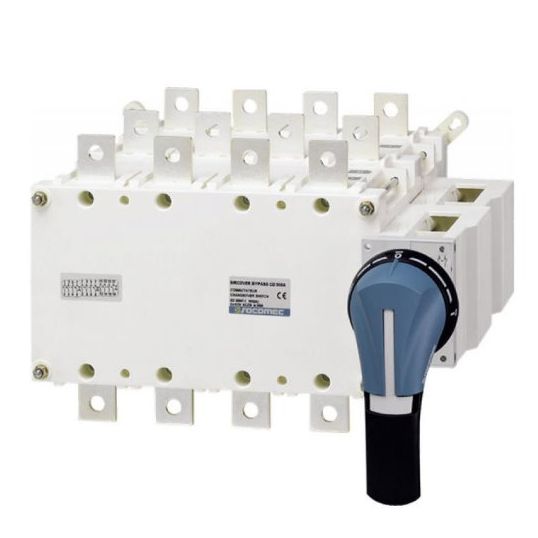

Socomec Changeover Switch UPS Bypass Front Operated 4P 1000A AC21 710 kW AC23 Base Mount IP65

chevron-left

Description

chevron-down
Changeover Switch UPS Bypass Front Operated, 400/690 Volt AC, 220/440 Volt DC, AC21 Rating: 1000 Amp @ 690 Volt, 1600 Amp @ 400 Volt, AC23 Rating: 500 Amp @ 690 Volt, 1250 Amp @ 400 Volt, 710 kW @ 400/415 Volt, 4 Pole, 3 Phase, Switching Positions: 3, 4 x 185 mm, Base Mount, IP65, 288 mm Height, 598 mm Width, 560 mm Depth

Key Specifications

chevron-down
SKU
SOCBCO16004PMB
Brand
Socomec
Range Name
SIRCOVER BYPASS
Product Type
Changeover Switches

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Standard (I-0-II) and make before break (I-I and II-II) options available covering any application requirement
  • Three stable positions (I-O-II) not affected by voltage drops or vibrations ensuring the connected load is protected against possible network interference
  • Easy connections thanks to copper bar connection kit accessory for 2000 to 3200 A switches enabling the use of flat or edgewise connection with top or bottom bridging
  • Compatibility with the ergonomic IP65 S-Type Handles which features interlocking (in the ON position), padlocking, UV and chemical agent resistive material and the choice of standard blue or red/yellow colour
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product BCO16004PMB
AC21 Rating 1000 Amp AC21 @ 690 Volt/1600 Amp AC21 @ 400 Volt
AC23 Rating 500 Amp @ 690 Volt/1250 Amp 710 kW @ 400-415 Volt
Conductor Size 4 x 185 sq-mm
Depth 560 mm
Height 288 mm
IP Rating IP65
Mounting Method Base Plate
Number Of Poles 4 Pole
Phase 3 Phase
Switching Positions 3
Voltage 400-690 Volt AC/220-440 Volt DC
Width 598 mm
