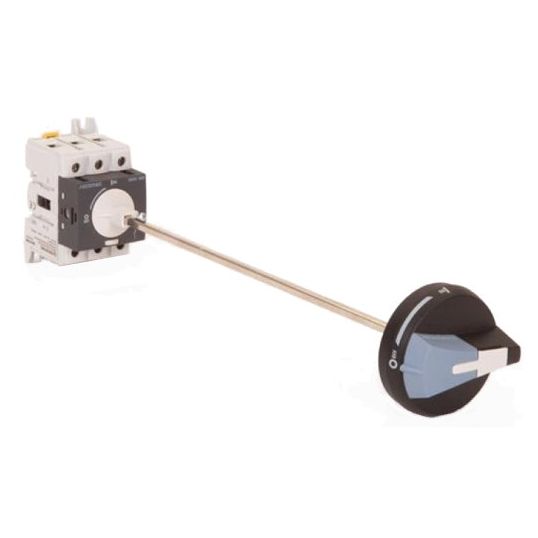

Socomec Load-Break Switch Front Operated 3P 63A AC21 30 kW AC23 DIN Rail or Base Mount IP65

Description

Load-Break Switch Front Operated, 400-690 Volt AC/220-500 Volt DC, 63 Amp, 63 Amp AC23 at 400-500 Volt AC23 Rating, 3 Pole, 2.5-35 sq-mm, 2-2.2 Nm Tightening Torque, IP65, 85 mm Height, 52.5 mm Width, 136 mm Depth

Key Specifications

SKU	SOCSLBM633P
Brand	Socomec
Range Name	SIRCO M
Product Type	Load-Break Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Double break per pole offers high durability and short-circuit withstand Use of glass fibre reinforced polyester provides high mechanical and thermal resistance (does not include SLBM or VLBM modular series) Quick and easy to install thanks to good centre to centre distance and connection accessories including copper connecting links Wide range of accessories available which is flexible in adapting to various applications and reduces the cost of management and storage All Socomec load break switches are compatible with the ergonomic IP65 S-Type Handles which features interlocking (in the ON position), padlocking, UV and chemical agent resistive material and the choice of standard blue or red/yellow colour
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	SLBM633P
AC23 Rating	63 Amp AC23 at 400-500 Volt
Cable Size	2.5-35 sq-mm
Current	63 Amp
Depth	136 mm
Height	85 mm
IP Rating	IP65
Number Of Poles	3 Pole
Tightening Torque	2-2.2 Nm
Voltage	400-690 Volt AC/220-500 Volt DC
Width	52.5 mm
