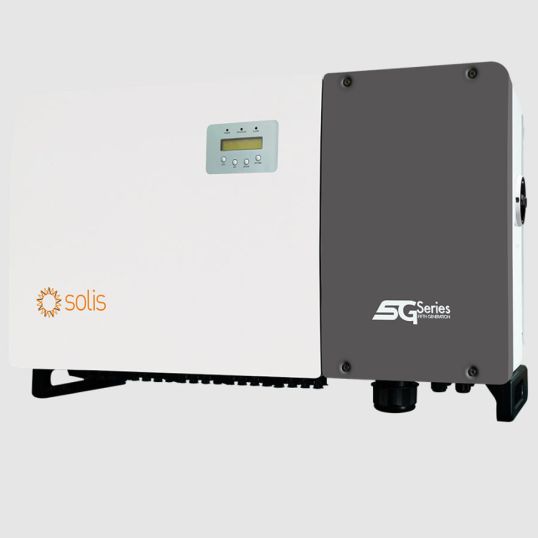

Solis S5 110kW PV Grid Tie Inverter 10 MPPT 3 Ph Built-in DC

chevron-left

Description

chevron-down
Solis S5 110kW PV Grid Tie Inverter 10 MPPT 3 Ph Built-in DC

Key Specifications

chevron-down
SKU
SOLS5-GC110K-AU
Brand
Solis
Product Type
Inverters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 10 MPPTs, Max. Efficiency 99%
  • High Power Tracking Density - 90MPPT/MW
  • >150% DC/AC Ratio
  • Overvoltage load reduction and leakage current suppression technology, low failure rate
  • Night SVG Function
  • Intelligent String Monitoring. Smart I-V Curve Scan
  • Remote Firmware Upgrade with Simple Operation
  • DC Side Supports *Y* Connector
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product S5-GC110K-AU
AC Operating Frequency 50 Hz
AC Nominal Voltage 3/N/PE 230V/400V
AC Max. Apparent Power 121 kVA
AC Output Current 158.8 Amp
AC Output Power 110 kW
Communication Port RS485 Optional: Wi-Fi GPRS
Connection Type MC4 Connector
DC Input Voltage 1100 Volt
DC Max. Input Current 10x 26 Amp
Cooling Method Intelligent Redudant Fan-Cooling
DC MPPT Voltage Range 180-1000 Volt
DC Nominal Voltage 600 Volt
DC Switch Yes
DC Start-up Voltage 195 Volt
Display Type LCD
Depth 344.5 mm
European Weighted Efficiency 98.30%
IP Rating IP66
Height 567 mm
Efficiency 98.70%
Max. Operating Altitude 4000 Mtr
Number of MPPTs 10
Operating Temperature -25 to 60 deg C
Phase 3 Phase
Power Factor >0.99 (0.8 Leading-0.8 Lagging)
Relative Humidity 0-100%
Total Harmonic Distortion <3%
Topology Transformerless
Width 1065 mm
