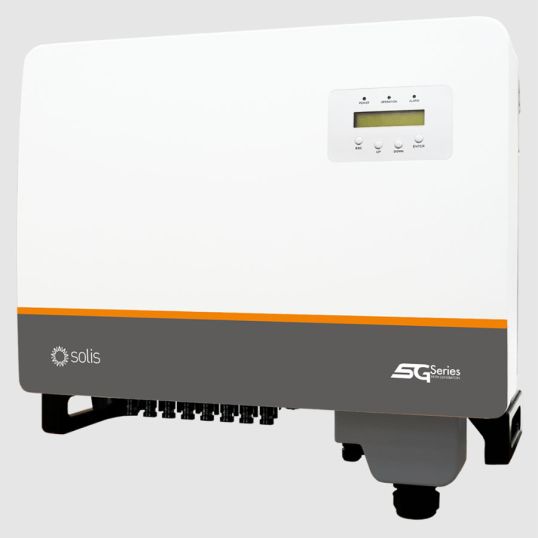

Solis PV Grid Inverter Three Phase 30kW 4 MPPT Built-in DC

chevron-left

Description

chevron-down
PV Grid Inverter, 3 Phase, 39.9 kW DC Input, 1100 Volt DC Input, 200-1000 Volt DC MPPT Voltage Range, 180 Volt DC Start-up, 32 Amp DC Max. Input, 4 MPPTs, 30 kW AC Output, 30 kVA AC Max. Apparent, 50 Hz, 50.2 Amp AC Output, >0.99 (0.8 Leading-0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 98.6% Efficiency, 98.2% European Weighted Efficiency, Transformerless, 4000 mtr Max. Altitude, Integrated DC Switch, RS485, Optional: Wi-Fi, GPRS, LCD Display, Intelligent Redundant Fan-Cooling Cooling, DC: MC4, AC: OT Terminal Connection, IP65,-25 to 60 deg C, 0-100% Relative Humidity, 629mm Height, 647mm Width, 252mm Depth, 37 kg, AS/NZS 4777.2:2020, IEC 62116, IEC 61727, IEC 60068, IEC 61683

Key Specifications

chevron-down
SKU
SOLS5-GC30K-AU
Brand
Solis
Product Type
Inverters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Support night time PID recovery function, increase overall system yield (optional)
  • Wide voltage range and low startup voltage
  • Support export power control
  • Intelligent string monitoring, smart I-V curve scan
  • Scan to register on SolisCloud, support remote upgrade and control
  • AFCI protection, proactively reduces fire risk
  • Globally recognised branded componentry for longer life
  • Intelligent redundant fan-cooling
  • Support GPRS/WiFi communication with less wiring/construction cost
  • >130% DC/AC ratio
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product S5-GC30K-AU
AC Max. Apparent Power 30 kVA
AC Operating Frequency 50 Hz
AC Output Current 50.2 Amp
AC Output Power 30 kW
Communication Port RS485/Optional: Wi-Fi/GPRS
Connection Type DC: MC4/AC: OT Terminal
Cooling Method Intelligent Redundant Fan-Cooling
DC Input Power 39.9 kW
DC Input Voltage 1100 Volt
DC Max. Input Current 32 Amp
DC MPPT Voltage Range 200-1000 Volt
DC Start-up Voltage 180 Volt
DC Switch Integrated
Depth 252 mm
Display Type LCD
Efficiency 98.60%
European Weighted Efficiency 98.20%
IP Rating IP65
Height 629 mm
Max. Operating Altitude 4000 mtr
Number of MPPTs 4
Operating Temperature -25 to 60 deg C
Phase 3 Phase
Power Factor >0.99 (0.8 Leading-0.8 Lagging)
Relative Humidity 0-100%
Topology Transformerless
Total Harmonic Distortion <3%
Width 647 mm
