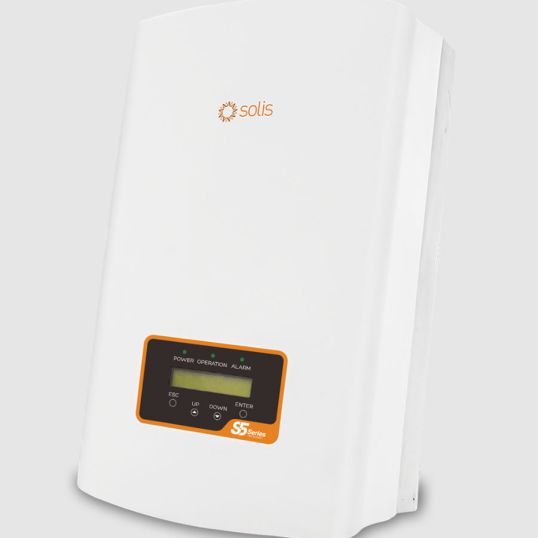

Solis S5 4600W PV Grid Tie Single Phase Inverter Dual MPPTBuit-in DC Include Wi-Fi 14A Max. input current
Description
Solar Inverter, 1 Phase Phase, 6.1 kW DC Input, 600 Volt DC Input, 330 Volt DC Nominal, 90-520 Volt DC MPPT Voltage Range, 120 Volt DC Start-up, 14 Amp DC Max. Input, 2 MPPTs, 4.6 kW AC Output, 4.6 kVA AC Max. Apparent, 230 Volt 1/N/PE, 50 Hz, 23.8 Amp AC Output, >0.99 (0.8 Leading-0.8 Lagging) Power Factor, <3% Total Harmonic Distortion, 0.976 Efficiency, 0.971 European Weighted Efficiency, Transformerless, 2000 mtr Max. Altitude, Optional (PV2 Switch) DC Switch, RS485 Optional: Wi-Fi GPRS, LCD Display, Natural Convection Cooling, DC: MC4/AC: Quick Connection Plug Connection, IP65, -25 to 60 deg C
Key Specifications
| SKU |
SOLS5-GR1P4.6K
|
|---|---|
| Brand |
Solis
|
| Range Name |
Inverter
|
| Product Type |
Inverters
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | S5-GR1P4.6K |
| AC Max. Apparent Power | 4.6 kVA |
| AC Nominal Voltage | 230 Volt 1/N/PE |
| AC Operating Frequency | 50 Hz |
| AC Output Current | 23.8 Amp |
| AC Output Power | 4.6 kW |
| Communication Port | RS485 Optional: Wi-Fi GPRS |
| Connection Type | DC: MC4/AC: Quick Connection Plug |
| Cooling Method | Natural Convection |
| DC Input Power | 6.1 kW |
| DC Input Voltage | 600 Volt |
| DC Max. Input Current | 14 Amp |
| DC MPPT Voltage Range | 90-520 Volt |
| DC Nominal Voltage | 330 Volt |
| DC Start-up Voltage | 120 Volt |
| DC Switch | Optional (PV2 Switch) |
| Depth | 160 mm |
| Display Type | LCD |
| Efficiency | 0.976 |
| European Weighted Efficiency | 0.971 |
| IP Rating | IP65 |
| Height | 543 mm |
| Max. Operating Altitude | 2000 Mtr |
| Number of MPPTs | 2 |
| Operating Temperature | -25 to 60 deg C |
| Phase | 1 Phase |
| Power Factor | >0.99 (0.8 Leading-0.8 Lagging) |
| Relative Humidity | 0-100% |
| Topology | Transformerless |
| Total Harmonic Distortion | <3% |
| Width | 310 mm |
