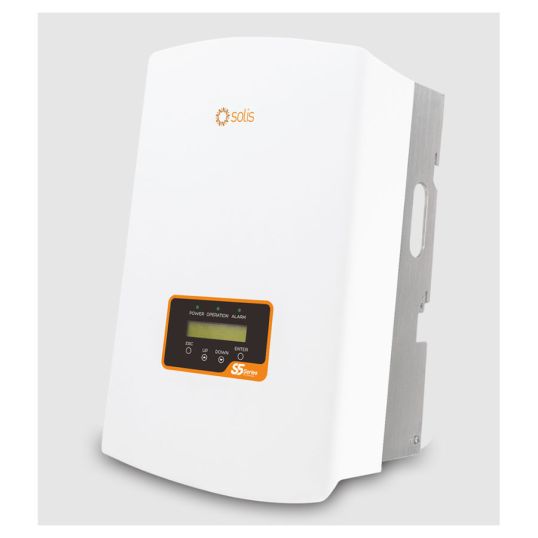

Solis S5 PV Grid Tie Inverter 2 MPPT 20kW 600V Three Phase IP66 Built-in DC
Description
Solis S5 20kW PV Grid Tie Inverter 2 MPPT 3 Ph Built-in DC
Key Specifications
| SKU |
SOLS5-GR3P20K
|
|---|---|
| Brand |
Solis
|
| Product Type |
Inverters
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | S5-GR3P20K |
| AC Max. Apparent Power | 20 kVA |
| AC Nominal Voltage | 3/N/PE 230V/400V |
| AC Operating Frequency | 50 Hz |
| AC Output Current | 31.8 Amp |
| AC Output Power | 20 kW |
| Communication Port | RS485 Optional: Wi-Fi GPRS |
| Connection Type | DC: MC4/ AC: Quick Connection Plug |
| Cooling Method | Intelligent Redudant Fan-Cooling |
| DC Input Power | 26.6 kW |
| DC Input Voltage | 1100 Volt |
| DC Max. Input Current | 32 Amp/32 Amp |
| DC MPPT Voltage Range | 160-1000 Volt |
| DC Nominal Voltage | 600 Volt |
| DC Start-up Voltage | 180 Volt |
| DC Switch | Yes (PV2 Switch) |
| Depth | 219 mm |
| Display Type | LCD |
| Efficiency | 98.70% |
| European Weighted Efficiency | 98.10% |
| IP Rating | IP66 |
| Height | 563 mm |
| Max. Operating Altitude | 2000 Mtr |
| Number of MPPTs | 2 |
| Operating Temperature | -25 to 60 deg C |
| Phase | 3 Phase |
| Power Factor | >0.99 (0.8 Leading-0.8 Lagging) |
| Relative Humidity | 0-100% |
| Topology | Transformerless |
| Total Harmonic Distortion | <2% |
| Width | 310 mm |
