Solis S6 Energy Storage Inverter 2 MPPT 6kW 600V Single Phase IP66

Name: Solis S6 6kW Hybrid Inverter 2 MPPT 1 Phase
SKU: SOLS6-EH1P6K-L
Availability: InStock

Description

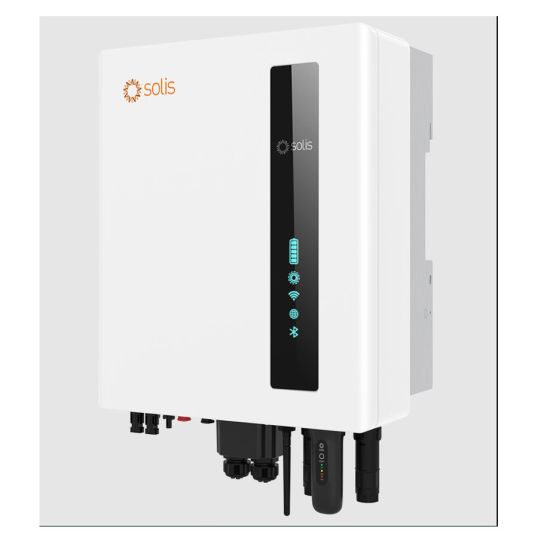

Solis S6 6kW Hybrid Inverter 2 MPPT 1 Phase

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Industry Leading 125A/6kW Max Charge/Discharge Rate Integrated 2 MPPTs for multiple array orientations Automatic UPS Switching Support Peak Shaving Mode Supports 1 Phase & 3 Phase Flexible Connection on both Grid & Backup Port Compatible with multiple brands of lithium battery models Increased battery protection and operation features to extend battery life
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	S6-EH1P6K-L
AC Max. Apparent Power	6.6 kVA
AC Nominal Voltage	220 V / 230 V
AC Operating Frequency	50/60 Hz
AC Output Current	27.3 Amp
AC Output Power	6 kW
Battery	Li-Ion/Lead Acid - Batt Voltage Range: 42-58V
Communication Port	RS485 CAN Optional: Wi-Fi GPRS LAN
Connection Type	DC: MC4 / AC: Quick Connection Plug
Cooling Method	Natural Convection
DC Input Power	8 kW
DC Input Voltage	600 Volt
DC Max. Input Current	16 Amp
DC MPPT Voltage Range	90-520 Volt
DC Nominal Voltage	330 Volt
DC Start-up Voltage	90 Volt
Depth	205 mm
Display Type	LED + APP
Efficiency	97.50%
European Weighted Efficiency	96.20%
IP Rating	IP66
Height	480 mm
Max. Operating Altitude	4000 Mtr
Number of MPPTs	2
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Power Factor	>0.99 (0.8 Leading-0.8 Lagging)
Topology	High Frequency Isolation (For Battery)
Total Harmonic Distortion	<2%
Width	405 mm
